Odyssey Powersports
The Powersports range makes Odyssey’s famous performance and quality available to the small engine starting market. Odyssey’s leading technology and power density is perfectly suited for applications where space and weight are at an absolute premium and durability in harsh conditions is paramount. This range feature the smaller insert and bolt-thru designs native to the Motorcycle, Jet Ski, Snowmobile, Quad Bike and other small engine markets and offer exceptional tolerance to vibrations and mechanical abuse. Due to their sealed design, Odyssey batteries provide amazing safety and mounting fl exibility, being able to be installed in any orientation except inverted.
Features Benefits
Guaranteed Longer Service Life
- With an eight to twelve year design life (fl oat) and a three to ten year service life, Odyssey saves you time and money because you do not have to replace the battery as often.
Superior Cranking and Fast Charge Capability
- The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, and with simple constant voltage charging there is no limitation on the inrush current, providing faster charge recovery.
Mounting Flexibility
- The Odyssey battery may be installed on its sides at any angle without sacrificing any performance attributes. There is no fear of any acid spillage as Odyssey recycles the internal gas during operation or charging.
Superior Vibration resistance
- Odyssey batteries are of military grade and have endured rigorous tests that demonstrate their overall ruggedness and exceptional tolerance of mechanical abuse.
Ready Out of the Box
- Odyssey batteries are shipped fully charged. If Odyssey’s voltage is 12.65V or greater simply install the battery in your vehicle and you are ready to go!
Worry-Free Shipping
- Owing to the drycell design, the Odyssey battery is non-spillable, so it may be shipped worry-free by Express Freight Service or by Air.
Longer Storage Life
- Unlike conventional batteries that need to be recharged every six to twelve weeks, the Odyssey battery can be stored for up to 2 years at 25-degrees. Simply recharge and Odyssey is returned to full power.
Excellent Deep Discharge Recovery
- Should Odyssey become deeply discharged, simply recharge following instructions in the Odyssey Owner’s Manual.
Odyssey Range
Model |
Voltage |
PHCA** (5 sec) |
CCA* |
HCA |
MCA |
Nominal Capacity |
Reserve Capacity
Minutes |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
Terminal |
Torque Specs Nm max |
Internal Resistance
(mΩ) |
Short Circuit
Current |
20Hr
RateAh
|
10Hr
RateAh
|

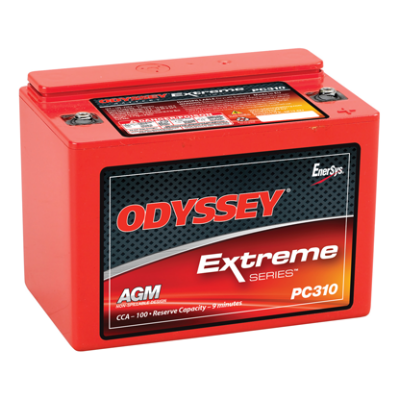

PC310 |
12 |
310 |
100 |
200 |
155 |
8 |
7 |
9 |
138.0 |
86.0 |
101.0 |
2.7 |
- M4 Ins + |
1.0 |
27.1 |
455A |
PC535 |
12 |
535 |
200 |
300 |
265 |
14 |
13 |
21 |
170.2 |
99.1 |
158.5 |
5.4 |
+ M6 Stud - |
4.5 |
8 |
1000A |
PC545MJ |
12 |
460 |
150 |
280 |
220 |
13 |
12 |
18 |
177.8 |
85.9 |
131.3 |
5.2 |
- M6 Ins + |
5.6 |
10 |
1200A |
PC625 |
12 |
530 |
200 |
420 |
340 |
18 |
17 |
27 |
170.2 |
99.1 |
176.5 |
6.0 |
- M6 Ins + |
4.5 |
7 |
1800A |
PC680P |
12 |
520 |
170 |
350 |
280 |
16 |
16 |
24 |
184.7 |
79.0 |
191.8 |
7.0 |
- M6 Ins + |
5.6 |
7 |
1800A |
PC680MJT |
12 |
520 |
170 |
350 |
280 |
16 |
16 |
24 |
184.7 |
79.0 |
191.8 |
7.0 |
-BrassSAE+ |
5.6 |
7 |
1800A |
PC925MJT / PC925LMJ |
12 |
900 |
330 |
610 |
480 |
28 |
27 |
48 |
168.7 |
179.1 |
148.1 |
11.8 |
-BrassSAE+ / + M6 Ins - |
6.8 |
5 |
2400A |
PC950^ (ER30) |
12 |
950 |
400 |
600 |
500 |
34 |
32 |
60 |
250.0 |
97.0 |
156.0 |
9.0 |
- M6 Stud + |
3.9 |
7.1 |
1700A |
PC1100^ (ER40) |
12 |
1100 |
500 |
800 |
650 |
45 |
43 |
87 |
250.0 |
97.0 |
206.0 |
12.5 |
- M6 Stud + |
3.9 |
5.1 |
2450A |
PC1200MJT |
12 |
1200 |
540 |
860 |
725 |
42 |
40 |
78 |
199.9 |
169.2 |
193.0 |
17.4 |
-BrassSAE+ |
6.8 |
4.5 |
2600A |
PC1230 |
12 |
1230 |
760 |
1050 |
815 |
55 |
50 |
110 |
240.3 |
179.8 |
201.2 |
20.6 |
+ SAE & GM - |
6.8 |
2.5 |
3100A |
PC1350 |
12 |
1350 |
770 |
1080 |
960 |
95 |
88.5 |
195 |
353.0 |
175.0 |
190.0 |
27.4 |
- SAE Din + |
N/A |
4.2 |
2900A |
PC1400-25 |
12 |
1400 |
850 |
1150 |
950 |
65 |
55 |
130 |
240.3 |
173.7 |
220.7 |
22.7 |
+ SAE - |
6.8 |
2.5 |
3100A |
PC1400-35 |
12 |
1400 |
850 |
1150 |
950 |
65 |
55 |
130 |
240.3 |
173.7 |
220.7 |
22.7 |
- SAE + |
6.8 |
2.5 |
3100A |
PC1500DT |
12 |
1500 |
850 |
1250 |
1050 |
68 |
62 |
135 |
275.6 |
179.8 |
200.2 |
22.4 |
+ SAE & GM - |
6.8 |
2.5 |
3100A |
PC1700MJT |
12 |
1550 |
810 |
1325 |
1175 |
68 |
65 |
142 |
331.0 |
168.4 |
197.6 |
27.6 |
-BrassSAE+ |
6.8 |
3.5 |
3500A |
PC1750-65
|
12 |
1750
|
950 |
1350
|
1070 |
74 |
65 |
145
|
300.5 |
182.9 |
190.5 |
26.3 |
+ SAE - |
6.8
|
2.0
|
5000A |
PC2150MJ |
12 |
2150 |
1150 |
1545 |
1370 |
100 |
92 |
205 |
331.7 |
175.0 |
243.6 |
35.3 |
-BrassSAE+ |
16.9-22.6 |
2.2 |
5000A |
PC2250MJ |
12 |
2250 |
1225 |
1730 |
1550 |
126 |
114 |
240 |
286.0 |
269.0 |
233.0 |
39.0 |
Opp Dual |
11.0
For 3/8” Stud Only |
2.1 |
5000A |
* Cold Start Performance S.A.E J537 JUNE 82
** Pulse Current
† Can be fitted with brass automotive terminal
^ PC370, PC950 and PC1100 also known as Extreme ER15, Extreme ER30 and Extreme ER40 respectively
# Fitted with dual terminals as standard
Optional metal jacket available on PC680P
Operating Temperature Range = PC310 and PC1800-FT: -40°C to 50°C, PC370,
PC950 and PC1100: -40°C to 50°C, PC535 and PC625: -40°C to 45°C,
PC680P: -40°C to 45°C, PC545MJ, PC680MJT, PC925LMJT, PC925MJT, PC1200MJT
and PC1700MJT (with metal jacket): -40°C to 80°C, PC1220, PC1350 and
PC2250: -40°C to 40°C, All other models: -40°C to 80°C
BCI models are PC1230DT, PC1400-25, PC1400-35, PC1500DT, PC1750-65
For suitable chargers, please see related products
|
