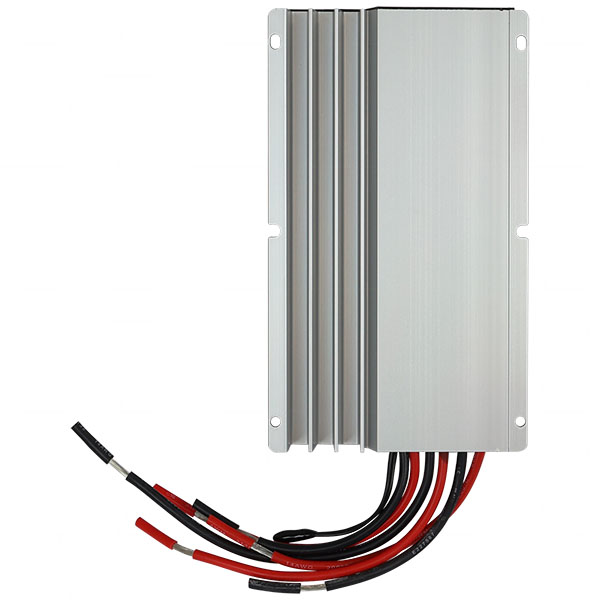

Fully programmable SMR-MPPT1575BT MPPT solar charge controller.
The SMR range is part of Lumiax's Smart MPPT Range with programming now done via the Bluetooth App.
Features:
- Innovative Maximum Power Point Tracking(MPPT) technology, tracking efficiency >99.9%.
- High charge conversion efficiency up to 97%.
- Bluetooth enabled for Monitoring & Control
- Use high performance, ultra-low power consumption
- Monitoring of the running status and parameters.
- Suitable for Gel, Flooded Lead Acid, AGM and Lithium battery. (Default is GEL)
- Four stage charging: MPPT, boost, equalization, float.
- External Temp sensor with automatic temp compensation
- Waterproof IP67, strong and durable aluminium case.
- Full automatic electronic protect function.
| Battery Parameters |
| Max Charging Voltage |
15A |
| System Voltage |
12 / 24V (Automatic Recognition) |
| Max Input Power |
200/400W |
| Max Voltage on Battery Terminal |
35V |
| Battery Type |
Lithium, AGM, Flooded LA, GEL (Default is GEL) |
| Panel Parameters |
| Max Voltage on PV Terminal *1 |
55V |
| Dusk/Dawn Detect Voltage |
3.0~20.0V |
| Day/Night Delay Time |
0~30 minutes (Programmable) |
| MPPT Tracking Range *2 |
(Battery Voltage +1.0V)~Voc*0.9 |
| Max Tracking Efficiency |
99.9% |
| Load |
| Output Current |
15A |
| System Parameters |
| Max Charge Conversion |
97.5% |
| Self Consumption |
6mA |
| Ingress Protection |
IP67 |
SolarLife BT App
Get real-time and history data of PV, battery, and, load, plus select your battery type through the Bluetooth app
|
