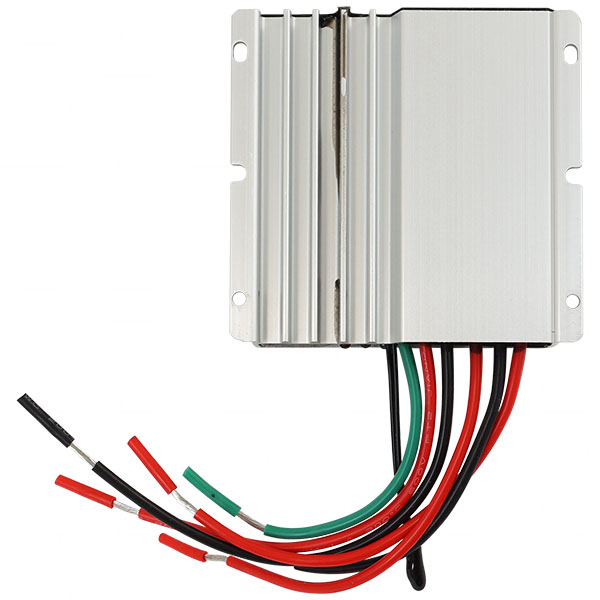

Lumiax SMR-MPPT1050BT Smart-MPPT Series Bluetooth MPPT Programmable Solar Charge Controller 10A max 130W Input & IP67 Rated

SMR-MPPT1050BT
Lumiax SMR-MPPT1050BT Smart-MPPT Series Bluetooth MPPT Programmable Solar Charge Controller 10A max 130W Input & IP67 Rated

Shipping & Handling Calculator:

Post Code:

Model No	SMR-MPPT1050BT
Selling Unit	EACH
Description	Lumiax SMR-MPPT1050BT Smart-MPPT Series Bluetooth MPPT Programmable Solar Charge Controller 10A max 130W Input & IP67 Rated
Voltage	12V
Brand	Lumiax
Size	10A
Width	85.8mm
Height	23.1mm
Length/Breadth/Depth	81mm
Weight	260g
Weight(kg)	0.300
Brand	Lumiax

Fully programmable SMR-MPPT1050BT MPPT solar charge controller.

The SMR range is part of Lumiax's Smart MPPT Range with programming now done via the Bluetooth App.

Features:

Innovative Maximum Power Point Tracking(MPPT) technology, tracking efficiency >99.9%.
High charge conversion efficiency up to 96.5%.
Adjustable 5-stage timer for load output.
Bluetooth enabled for Monitoring & Control
Use high performance, ultra-low power consumption
Monitoring of the running status and parameters.
Suitable for Gel, Flooded Lead Acid, AGM and Lithium battery. (Default is GEL)
Four stage charging: MPPT, boost, equalization, float.
When BMS power off because of LVD, it can activate the system automatically.
Day/Night threshold can adjust automatically.
Configurable via Solar Life App (See Below)
Waterproof IP67, strong and durable aluminium case.
Full automatic electronic protect function.

Battery Parameters
Max Charging Voltage	10A
System Voltage	12V
Max Input Power	130W
Max Voltage on Battery Terminal	25V
Battery Type	Lithium, AGM, Flooded LA, GEL (Default is GEL)
Panel Parameters
Max Voltage on PV Terminal *1	45V
Dusk/Dawn Detect Voltage	3.0~8.0V
Day/Night Delay Time	0~30 minutes (Programmable)
MPPT Tracking Range *2	(Battery Voltage +1.0V)~Voc*0.9
Max Tracking Efficiency	99.9%
Load
Output Current	10A
System Parameters
Max Charge Conversion	96.5%
Self Consumption	6mA
Ingress Protection	IP67
