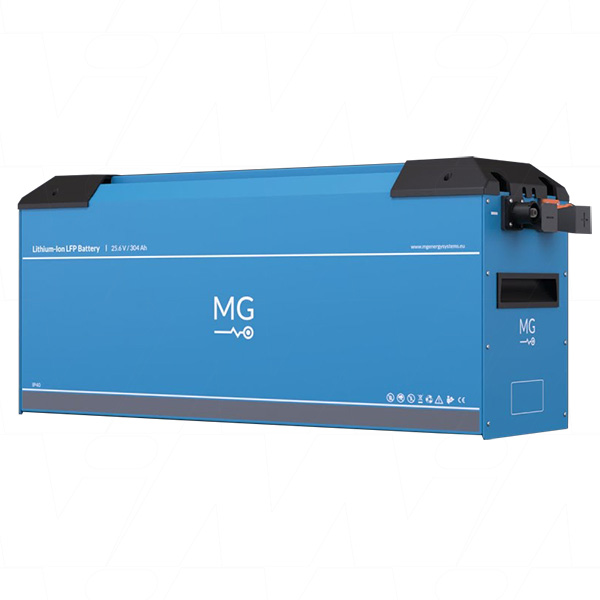

MG Energy MGLFP244304-M12HV 25.6V 304Ah 7800Wh 8S1P LiFePO4 Battery +RJ45 Connector - Metal Enclosure - Up to 620VDC

MGLFP244304-M12HV
MG Energy MGLFP244304-M12HV 25.6V 304Ah 7800Wh 8S1P LiFePO4 Battery +RJ45 Connector - Metal Enclosure - Up to 620VDC

$7818 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:

Product Details

Model No	MGLFP244304-M12HV
Selling Unit	EACH
Description	MG Energy MGLFP244304-M12HV 25.6V 304Ah 7800Wh 8S1P LiFePO4 Battery +RJ45 Connector - Metal Enclosure - Up to 620VDC
Application	Automotive/Marine/RV Auxilliary Battery Banks, Off-Grid & Self Consumption Solar, UPS, Peak Shaving
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	25.6V
Nominal Capacity	304000mAh
Maximum Continuous Discharge Current	456000
Brand	MG Energy
Termination	SurLok
Size	8S1P
Width	193mm
Height	294mm
Length/Breadth/Depth	685mm
Weight	54000g
Weight(kg)	54
Brand	MG Energy

MG Energy Systems LFP Series 25.6V 304Ah 7782Wh LiFePO4 Battery Module SLP

The MG LFP Battery 24 V 304 SLP contains the third generation LiFePO4 chemistry forms the basis of this safe and reliable battery.

With the SurLok Plus Connectors, installation is safer and easier. This battery is fully scalable in both voltage and capacity. Easily expand your energy storage system (ESS) by connecting the LFP batteries in parallel and series. Connect up to 22 modules in series, to create a battery voltage of 563 Vdc. Adding more parallel strings increases the system capacity. As a result, you can reach system capacities of over 1 MWh.

Features:

3rd generation LiFePO4 chemistry
Integrated Slave BMS
Individual Cell Monitoring
Plug and Play Configuration Automatic Configuration
Steel Enclosure

Specifications:

Cycle life: 4000 cycles (80% DoD) - Default mode
Continuous discharge current: 304A*
Maximum discharge current: 456A*
End of discharge voltage: 240V
Charge voltage: 28.2V
Continuous charge current: 304A*
Maximum charge current: 304A*
Operating Discharge temperature: -20°C to + 55ºC
Operating Charge temperature: 0°C to + 45ºC
Storage temperature: +10°C to + 35ºC
Humidity (non-condensing): ≤ 95%
Protection class: IP30
Cooling: Air / Convection
Parallel Connection: Up to 96 Modules
Series Connection: Up to 22 Modules
Certifications: UN38.3, IEC-EN62619 (ES-TRIN) & IEC-EN62620 (ES-TRIN)

* Current is depending on battery temperature and state of charge. Duration is depending on battery temperature.

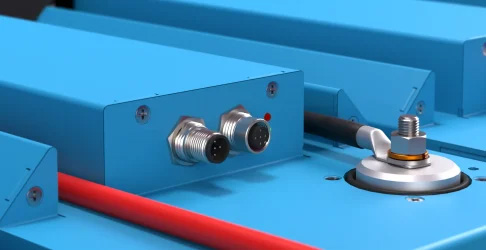

Functional Safety Image

Functional Safety | SIL-2

Several MG products hold a Functional Safety Certificate with SIL-2 (Safety Integrity Level 2) approval under IEC 61508. This certification verifies its compliance with rigorous safety standards, ensuring reliable risk mitigation, fault tolerance, and system integrity in critical applications. Validated through independent testing, it guarantees reduced hazards and seamless integration into safety-critical systems globally. Soon more products will hold this certificate.

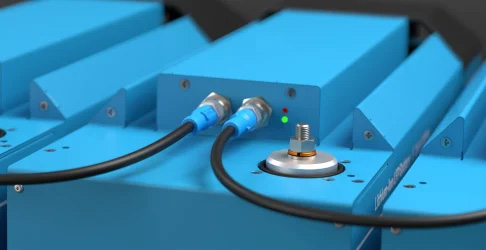

CAN-Bus Communication

The CAN-Bus enables communication between the LFP Battery and the MG Master BMS. The MG Master collects and monitors all relevant data from the entire battery bank. The LFP batteries 24 V are available with RJ45 or M12 CAN-Bus connectors.

Can Bus Image

Certifications Image

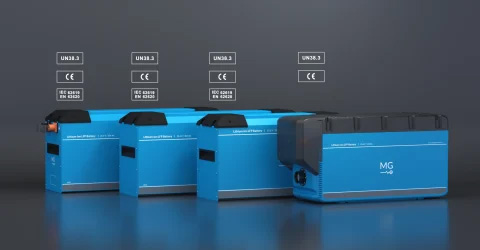

LFP Certification

LFP 24 V battery modules comply with several standards. ES-Trin regulations IEC-EN 62619 & IEC-EN 62620 for the LFP 280, LFP 304 and LFP 304 SLP are approved.

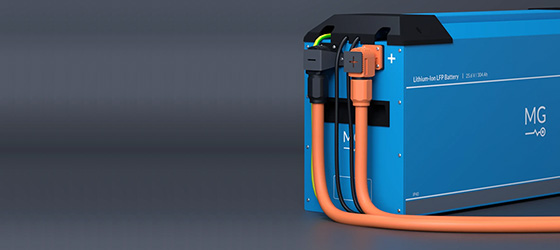

SurLok Plus:

The SurLok Plus connectors offer enhanced performance for demanding applications. With a compact design and current ratings up to 300 A and an IP67 rating, they ensure secure, corrosion-resistant connections in harsh environments. For example Ideal for marine, industrial, and ESS applications. The SurLok Plus connector provides a durable and affordable option.

SurLok Image

Low Voltage and High Voltage

By putting the LiFePO4 batteries in series, you can easily scale the voltage level. For example, four batteries in series creates a system voltage of 96 Vdc. As a result the LFP battery 24 V is an excellent choice for many applications. For instance: electric propulsion, mobile power packs and generator replacement. In addition, they are often used for solar energy storage and peak shaving purposes. Every MG energy storage system must include an MG Master battery management controller for safe and reliable operation. Connect multiple MG Masters in parallel to create larger systems up to 1 MWh. The optional SmartLink MX provides the possibility to create redundant systems. This increases the reliability of your battery system even more.
