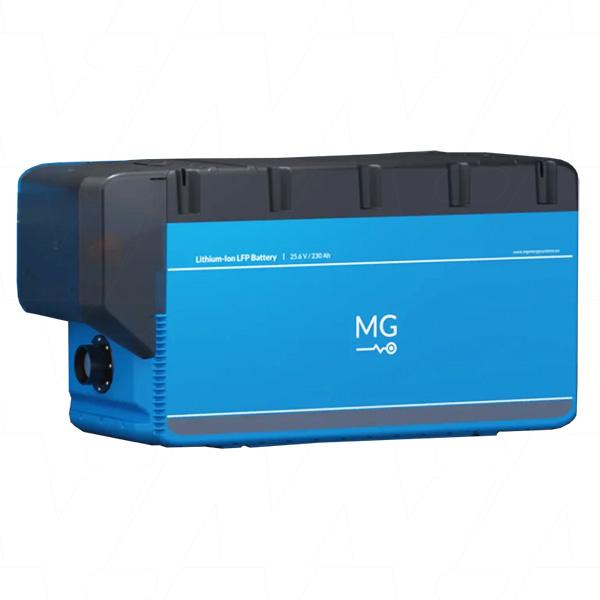

MG Energy MGLFP243230 25.6V 230Ah 5888Wh 8S1P LiFePO4 Battery + M12 HV Connector - IP65 Enclosure - Up to 563VDC

MGLFP243230
MG Energy MGLFP243230 25.6V 230Ah 5888Wh 8S1P LiFePO4 Battery + M12 HV Connector - IP65 Enclosure - Up to 563VDC

$5238 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No MGLFP243230
Selling Unit EACH
Description MG Energy MGLFP243230 25.6V 230Ah 5888Wh 8S1P LiFePO4 Battery + M12 HV Connector - IP65 Enclosure - Up to 563VDC
Application Automotive/Marine/RV Auxilliary Battery Banks, Off-Grid & Self Consumption Solar, UPS, Peak Shaving
Chemistry Lithium Iron Phosphate (LiFePO4)
Voltage 25.6V
Nominal Capacity 230000mAh
Brand MG Energy
Termination SurLok Plus
Size 8S1P
Width 531mm
Height 295mm
Length/Breadth/Depth 206mm
Weight 41000g
Weight(kg) 41
Brand MGLFP243230

MG Energy Systems LFP Series - IP65 Rated Module

The MG LFP Battery 24 V 230 IP contains the third generation LiFePO4 chemistry forms the basis of this safe and reliable battery.

The IP65 plastic enclosure combined with its venting mechanism, SurLok connectors and M12 CAN-Bus, make the battery true IP rated. As extra safety level, the battery contains an exhaust system (installation optional). Installation is fully scalable in both voltage and capacity. Easily expand your energy storage system (ESS) by connecting the LFP batteries in parallel and series. Connect up to 22 modules in series, to create a battery voltage of 563 Vdc. Adding more parallel strings increases the system capacity. As a result, you can reach system capacities of over 1 MWh.

25.6V 230Ah 5888Wh 8S1P LiFePO4 Battery Module - IP65

  • Lead-acid replacement
  • Extended cycle life
  • Compact design
  • Plug and Play
  • Easy installation
  • High charge and discharge rate
  • SurLok Plus connectors

Specifications:

  • Cycle life: >3500 cycles (80% DoD) @ 25Deg Celcius to EoL of 70% of initial capacity.
  • Continuous discharge current: 230A*
  • Max. discharge current: 345A*
  • End of discharge voltage: 24.0V
  • Charge voltage: 28.2V
  • Continuous charge current: 230A*
  • Max. charge current: 345A*
  • Operating Discharge temperature: -20°C to +55ºC
  • Operating Charge temperature: 0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Humidity (non-condensing): max. 95%
  • Protection class: IP65
  • Cooling: Air, Convection
  • BMS passive balancing with integrated slave BMS
  • Parallel Connection: Up to 96 modules
  • Series Connection: Up to 22 modules
  • Certifications:
    • IEC-EN62619 (ES0-TRIN) in progress
    • IEC-EN62620 (ES-TRIN)
  • Requires BMS Master Controllers - HV300, Master LV 24-48V, Master LV 73-96V

*Current is depending on battery temperature and state of charge. Duration is depending on battery temperature.

Features:

Practial Design image

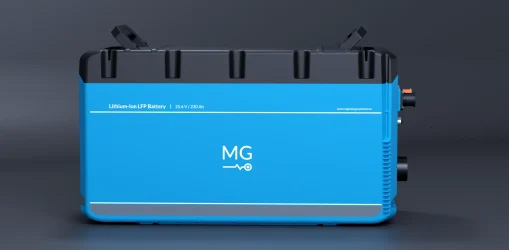

Practical Design

The LFP IP battery is designed with an eye for practicality. It features a clever design elements that streamlines installation and handling. This includes brackets, which enable easy surface mounting, saving time and design efforts. Besides that, convenient handles on top of the battery provide a secure grip for lifting and manoeuvring, making it easier to position and transport the battery, even in tight spaces.

True IP-Rated

The LFP IP battery is IP65 rated, thanks to its design features that ensure exceptional protection against dust and water ingress. Not only is the battery enclosure IP65, also the connectors and M12 connections are sealed. As a result the LFP IP battery is truly IP65 rated. This makes it an ideal choice for demanding applications where reliability and durability are paramount.

True IP Rated Icon

Exhaust System Image

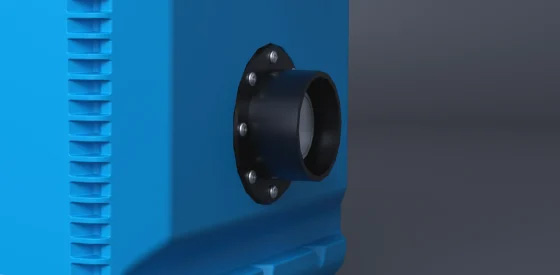

Exhaust System

The LFP IP battery features a sophisticated integrated exhaust system designed to prioritize safety. In the unlikely event of a thermal runaway, the exhaust opens under pressure, providing a secure release mechanism. Additionally, the exhaust incorporates a venting mechanism, allowing the battery to ‘breathe’ and maintain a stable internal environment. This prevents condensation from forming within the sealed enclosure and ensuring optimal operating conditions.
