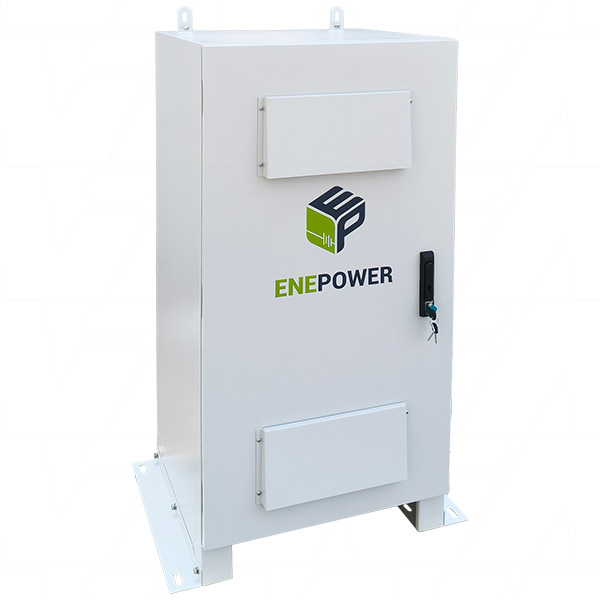

EBC26HV-ODFAN Enepower IP55 Rated Battery cabinet suitable to horizontally house up to 5 x 4RU sized 19" battery modules (up to 25.6kWh, max 480mm deep) and suitable for modules from Pylontech, Drypower, AERL, ZYC, Mictronix and many more.

This cabinet is the same physical dimensions as the EBC20V-ODFAN model but with a reconfigured internal structure to allow the modules to be installed horizontally.

Battery Storage Capacity:

• 4RU Modules x 5
• 3RU Modules x 6

Features:

• Heavy Duty Galvanised steel construction - Colour RAL7035
• 10mm thick NBR insulation
• IP55 ingress rating
• Removable Front Metal door with three-point keyed-alike handle locks with staple for a Padlock

  • Door Stay set at 120°
  • Door Alarm
• Twin 48VDC Cooling fans with temperature control
  • A 24/48 DCDC converter is required for 25 Volt battery Systems
• 4 x Cable glands in base plate
• Floor mount Plinths with full length L Brackets to secure cabinet
• Top brackets for secure wall fastening
• Handy Document pocket
• Removable filters

Warranty: The EBC26H-ODFAN comes with a standard warranty of Three (3) years.

Compatible Battery Modules

• 4RU size such as Pylontech US5000, Drypower ZRLVESS5KR-V1, Mictronix MPS-24-2.5, Mictronix MPS-48-5.1
• 3RU size such as Pylontech US3000, Pylontech UP2500*, ZYC Simpo 5000, AERL LiFe2-5120S
• 2RU size such as Pylontech US2000

*Fans require a Victron Orion TR 24/48 DC-DC converter when using 24V Battery systems

Alternative: If you don't need as much storage capacity in the same size cabinet, consider the EBC20V-ODFAN

The EBC20V-ODFAN vertically houses up to 4 x 4RU sized Modules for a total capacity of 20.48kWh and comes with a handy shelf for associated equipment.
