An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.

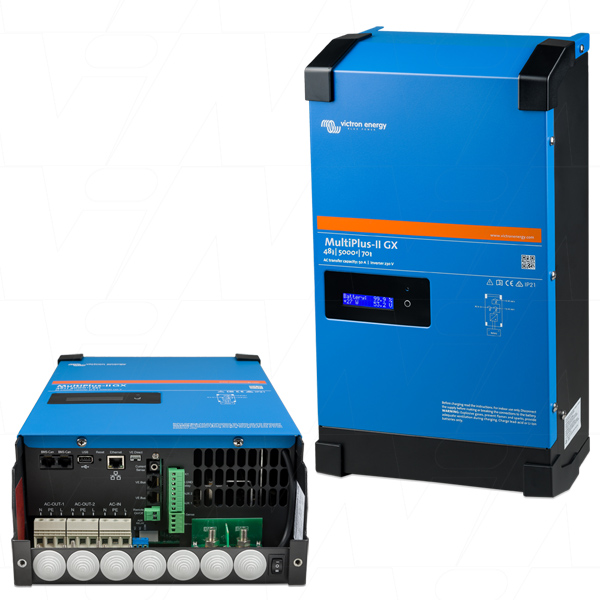

A MultiPlus-II with LCD and GX functionality
The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

GX device
The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
• A USB port.
• A Ethernet port.
• A VE.Direct port.

Applications
The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote onitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

Parallel and three phase operation
Only one GX unit is needed in case of Parallel and three phase operation.

IMPORTANT: This product requires a software update to be installed for CEC Compliance. To access the full Instructions and Download information, please log into MI Link and click the CEC Compliance button under Victron Energy Resources.

This package comes supplied with:

• 48V 5000VA 70A GX Inverter Charger
