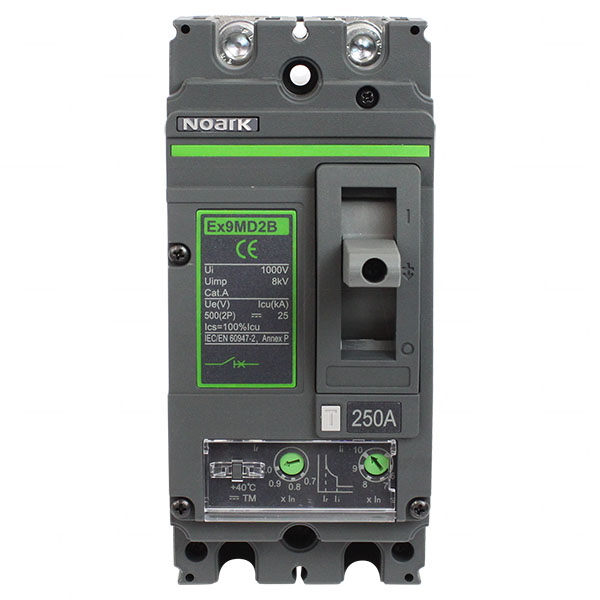

NOARK N852902 MCCB EX9MD2B 250A 500V 2 Pole DC Circuit Breaker

N852902-2P-MCCB 250A/500VDC
NOARK N852902 MCCB EX9MD2B 250A 500V 2 Pole DC Circuit Breaker

Shipping & Handling Calculator:

Post Code:

Model No	N852902-2P-MCCB 250A/500VDC
Selling Unit	EACH
Description	NOARK N852902 MCCB EX9MD2B 250A 500V 2 Pole DC Circuit Breaker
Application	Battery Banks, Solar, Automation, Control, Telecommunications, DC circuit applications
Voltage	500V
Brand	Noark
Size	250A
Width	70mm
Height	157mm
Length/Breadth/Depth	96.5mm
Weight	1200g
Weight(kg)	1.2
Brand	NOARK

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series	EX9MD2B TM DC250 2P
Poles	2 (250VDC per pole)
Current Rating (A)	250A
Voltage (Max.)	500VDC
Rated Insulation Voltage (VDC) Ui	1000VDC
Rated Breaking Capacity	25kA
Release Technology	Thermo Magnetic
Frame Size	2
Frame Rating	250A
IP Rating (All sides/terminals)	IP40 / 20
Standards	IEC/EN/AS60947-2
