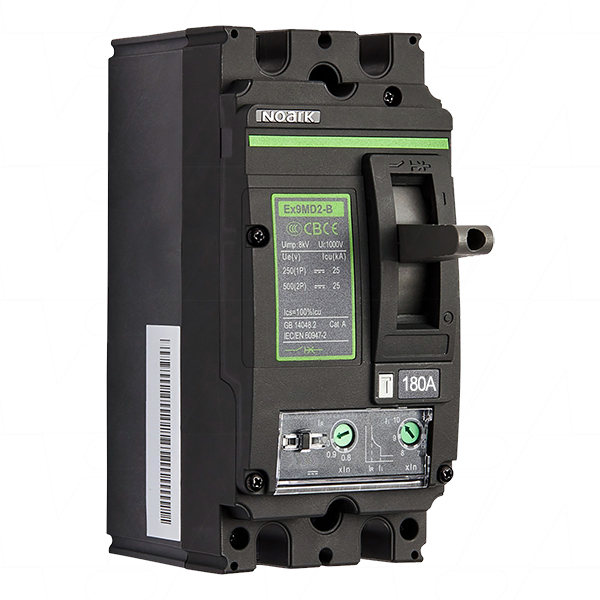

NOARK N852900 MCCB EX9MD2B 180A 500V 2 Pole DC Circuit Breaker

N852900-2P-MCCB 180A/500VDC
NOARK N852900 MCCB EX9MD2B 180A 500V 2 Pole DC Circuit Breaker

$385 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No N852900-2P-MCCB 180A/500VDC
Selling Unit EACH
Description NOARK N852900 MCCB EX9MD2B 180A 500V 2 Pole DC Circuit Breaker
Application Solar, Automation, Control, Telecommunications, DC circuit applications
Voltage 500V
Brand Noark
Size 180A
Width 70mm
Height 157mm
Length/Breadth/Depth 96.5mm
Weight(kg) 1.2
Brand NOARK

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series EX9MD2B TM DC180 2P
Poles 2 (250VDC per pole)
Current Rating (A) 180A
Voltage (Max.) 500VDC
Rated Insulation Voltage (VDC) Ui 1000VDC
Rated Breaking Capacity 25kA
Release Technology Thermo Magnetic
Frame Size 2
Frame Rating 250A
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2

Noark MCCB's are adjustable:

Noark Adjustment Icon

If the above product is out of stock, you can use the 200A rated N852901 model with the pot switch adjusted to 0.8 to still achieve the 180A rating.

Terminal Protector
Suitable Terminal Protector/Shield
