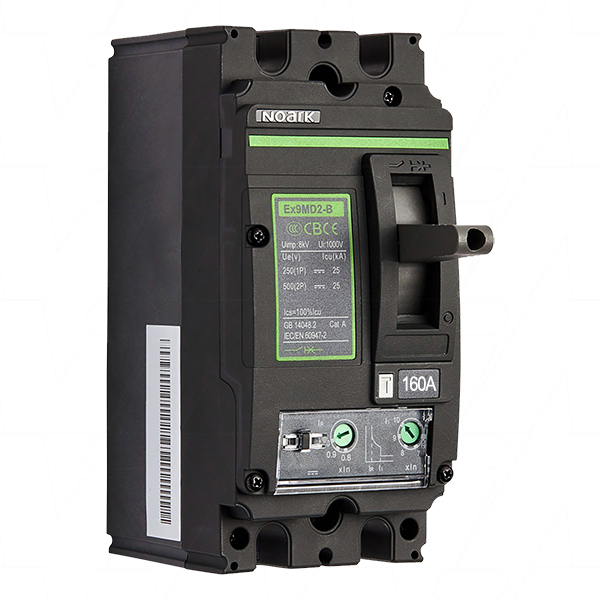

NOARK N852899 MCCB EX9MD2B 160A 500V 2 Pole DC Circuit Breaker

N852899-2P-MCCB 160A/500VDC
NOARK N852899 MCCB EX9MD2B 160A 500V 2 Pole DC Circuit Breaker

$356 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No N852899-2P-MCCB 160A/500VDC
Selling Unit EACH
Description NOARK N852899 MCCB EX9MD2B 160A 500V 2 Pole DC Circuit Breaker
Application Solar, Automation, Control, Telecommunications, DC circuit applications
Voltage 500V
Brand Noark
Size 160A
Width 70mm
Height 157mm
Length/Breadth/Depth 96.5mm
Weight(kg) 1.2
Brand NOARK

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series EX9MD2B TM DC160 2P
Poles 2 (250VDC per pole)
Current Rating (A) 160A
Voltage (Max.) 500VDC
Rated Insulation Voltage (VDC) Ui 1000VDC
Rated Breaking Capacity 25kA
Release Technology Thermo Magnetic
Frame Size 2
Frame Rating 250A
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2

Noark MCCB's are adjustable:

Noark Adjustment Icon

If the above product is out of stock, you can use the 180A rated N852900 model with the pot switch adjusted to 0.9 to still achieve a 162A rating.



Terminal Protector
Suitable Terminal Protector/Shield
