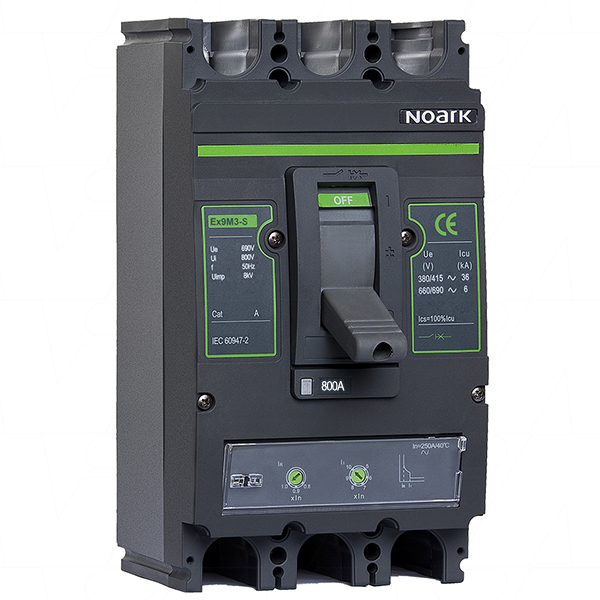

NOARK N852793 MCCB EX9MD5B 800A 750V 3 Pole DC Circuit Breaker

N852793-3P-MCCB 800A/750VDC
NOARK N852793 MCCB EX9MD5B 800A 750V 3 Pole DC Circuit Breaker

Shipping & Handling Calculator:

Post Code:

Model No	N852793-3P-MCCB 800A/750VDC
Selling Unit	EACH
Description	NOARK N852793 MCCB EX9MD5B 800A 750V 3 Pole DC Circuit Breaker
Application	Battery Banks, Solar, Automation, Control, Telecommunications, DC circuit applications
Voltage	750V
Brand	Noark
Size	800A
Width	195mm
Height	300mm
Length/Breadth/Depth	133.5mm
Weight	10200g
Weight(kg)	10.2
Brand	NOARK

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases.

Specifications

Noark Series	EX9MD55 TM DC800 3P
Poles	3 (250VDC per pole)
Current Rating (A)	800A
Voltage (Max.)	750VDC
Rated Insulation Voltage (VDC) Ui	1000VDC
Rated Breaking Capacity	25kA
Release Technology	Thermo Magnetic
Frame Size	5
Frame Rating	630A
IP Rating (All sides/terminals)	IP40 / 20
Standards	IEC/EN/AS60947-2
