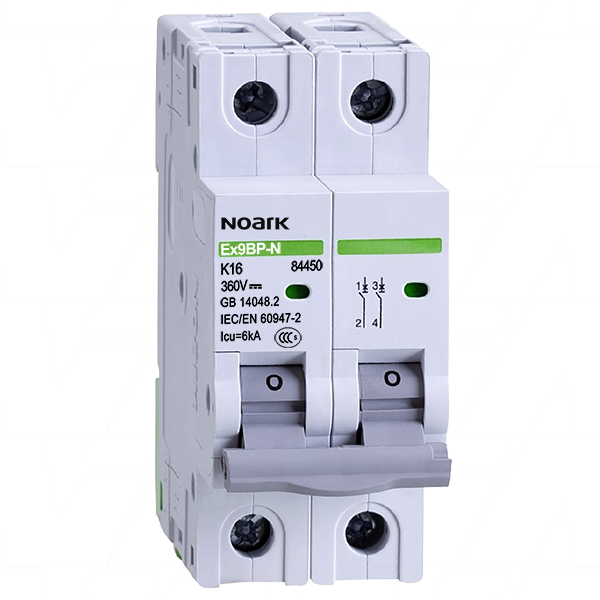

NOARK N84450 MCB EX9BP-N 16A 360V 2 Pole DC Circuit Breaker

N84450-2P-MCB 16A/360VDC
NOARK N84450 MCB EX9BP-N 16A 360V 2 Pole DC Circuit Breaker

$33 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:

Product Details

Model No	N84450-2P-MCB 16A/360VDC
Selling Unit	EACH
Description	NOARK N84450 MCB EX9BP-N 16A 360V 2 Pole DC Circuit Breaker
Application	Solar, Automation, Control, Telecommunications, DC circuit applications
Original Brand	Noark 10000147d
Voltage	360V
Brand	Noark
Size	16A
Width	36mm
Height	89mm
Length/Breadth/Depth	74mm
Weight	240g
Weight(kg)	0.260
Brand	NOARK

Noark Miniature 360V DC Circuit Breakers (Non-polarised)

Noark DC miniature circuit breakers are non-polarised and suitable for short-circuit and overload protection of general direct current applications up to 16A, in solar, automation, control, telecommunications, and many other DC circuit applications.

Specifications

Article Code	10000147
Noark Series	Ex9BP-N2P K 16A 360VDC
Poles	2 (180VDC per pole)
Current Rating (A)	16A
Voltage (Max.)	360VDC
Voltage (Min.)	12VDC
Rated Breaking Capacity	6kA
Curve Type	K
Rated Insulation Voltage (VDC) Ui	1000VDC
Terminal Capacity	35 mm²
Terminal Torque (Nm)	2-3.5Nm
Mounting	35mm Din Rail
IP Rating (All sides/terminals)	IP40 / 20
Standards	IEC/EN/AS60947-2, SAA101238EA
