Range - 9.0-80VDC

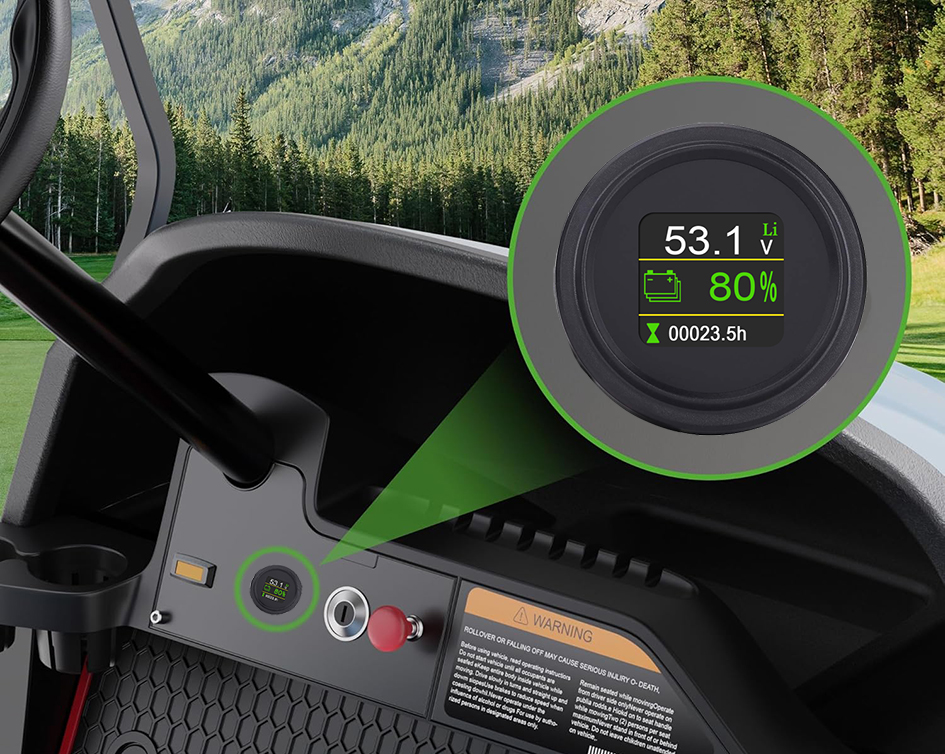

The VLEG-BMV Kit is a panel mounted battery status monitor/display for use with VoltGo's golf cart battery the VLEG5120A.

This handy monitor allows for simple battery status monitoring to ensure you're not stranded on the golf course.

The colour TFT display shows:

• Battery Voltage
• State of Charge percentage featuring coloured percentage ranges (see below)
• Estimated remaining run time in hours.

*Important: The VLEG BMV-KIT is only compatible with the VLEG5120A Golf Cart battery.

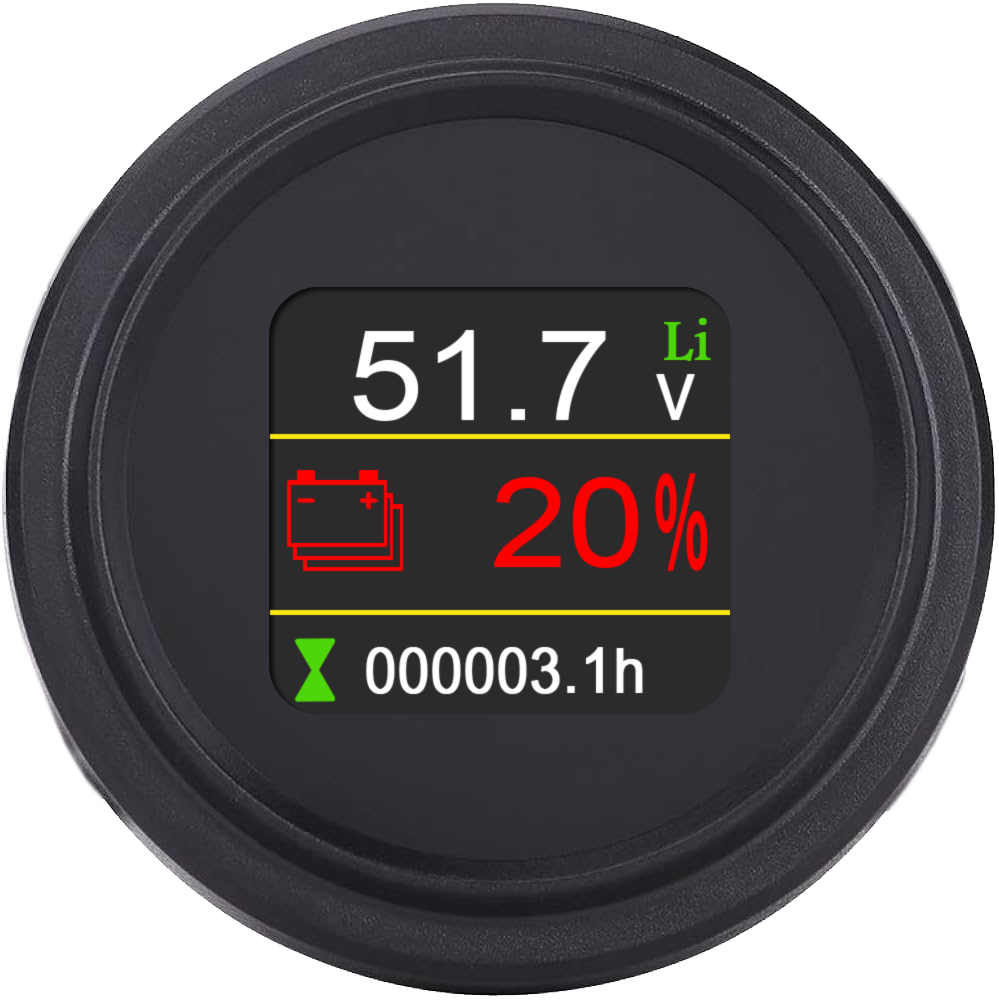

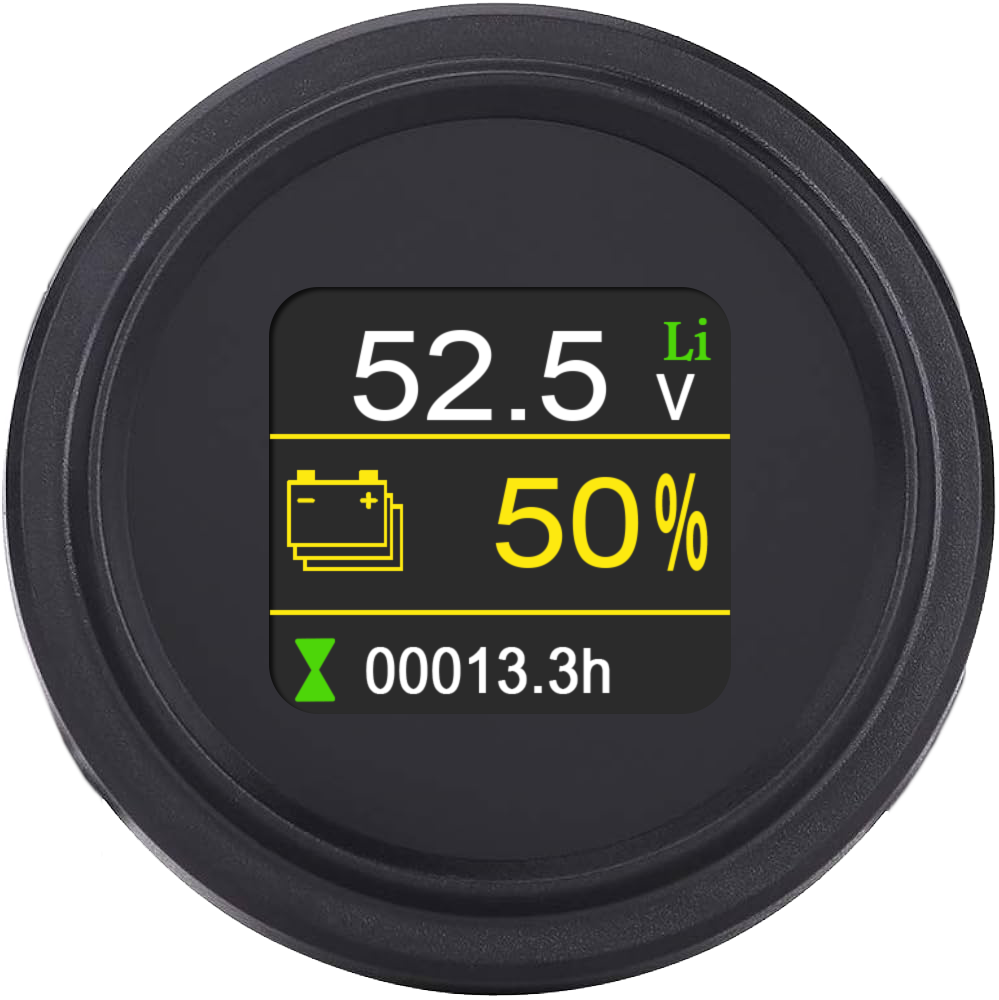

71% - 100% SOC - GREEN | 21% - 70% SOC - YELLOW | 0% - 20% SOC - RED

Warnings:

The VLEG-BMV Kit also highlights if it detects a communications fault, and displays the BMS fault code to assist in rectifying the issue.

IP Rated:

The monitor face is IP67 rated with the underside IP54 rated.

CAN Connection:

CAN protocols and pin layouts are available in the manual.

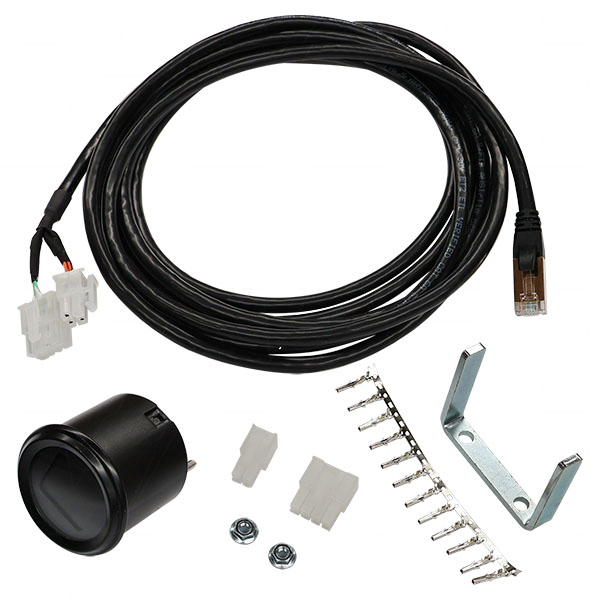

Inclusions:

• Battery Monitor & mounting hardware

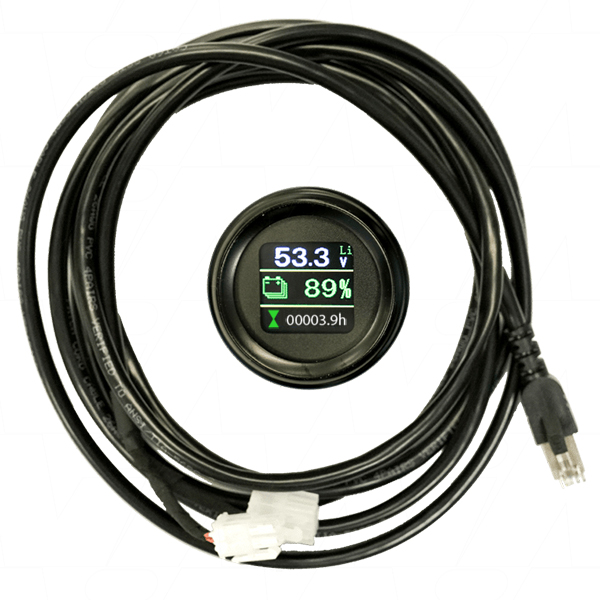

• 3.1 metre Cable kit to attach to Batteries
