Replaces the BPC123044012

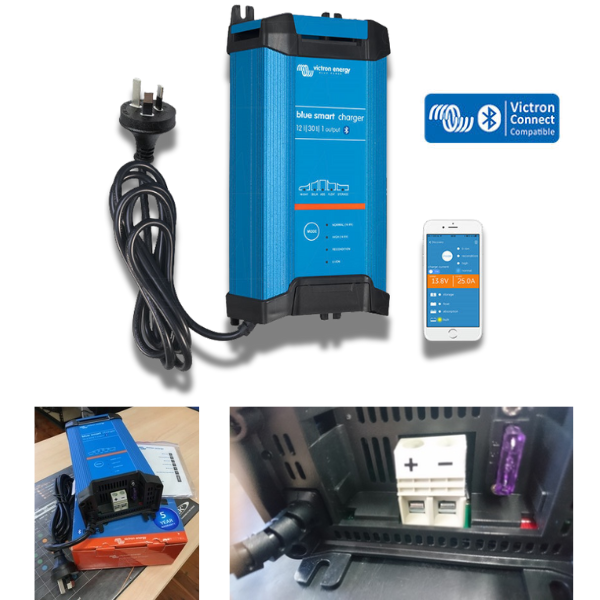

Bluetooth Smart enabled:
The Blue Smart IP22 Charger is the wireless solution to monitor voltage and current, to change settings and to update the charger with the Victron Connect app when new features become available.
Victron Connect:
Victron connect lets you program, as well as get live status and historical information from Victron products with built-in blue tooth support or by using a VE.Direct Bluetooth Smart dongle.
History File:
View historical data for the last 40 charge cycles. Information supplied includes Start and End voltages, time spent in each charge cycle, amp-hours charged, Completion status of each charge and charge profile used.
High efficiency:
With up to 94% efficiency, these chargers generate up to four times less heat when compared to the industry standard.
And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than the industry standard.
Adaptive 6 - stage charge algorithm: test - bulk – absorption - recondition – float – storage:
The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.
These chargers come standard with pre-set algorithms which are optimally set for all common Lead Acid and Lithium Batteries. For Battery Manufacturer specific settings, Expert mode allows changing practically all parameters and time limits used by the charge algorithm.
Storage Mode: less maintenance and aging when the battery is not in use
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2V/cell (13,2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulfation, a major cause of early battery failure.
Also charges Li-ion (LiFePO4) batteries
LiFePO4 batteries are charged with a simple bulk – absorption – float algorithm.
NIGHT and LOW setting
When in NIGHT or LOW mode, the output current is reduced to max. 25% of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.
Protected against overheating
Output current will reduce as temperature increases up to 50°C, but the Blue Smart Charger will not fail.
Eleven LEDs for status indication
Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY.
MODE button to set: NORMAL (14,4V) / HIGH (14,7V) / RECONDITION / LI-ION
Note: Cables from charger to battery is not included, Click here for cable options

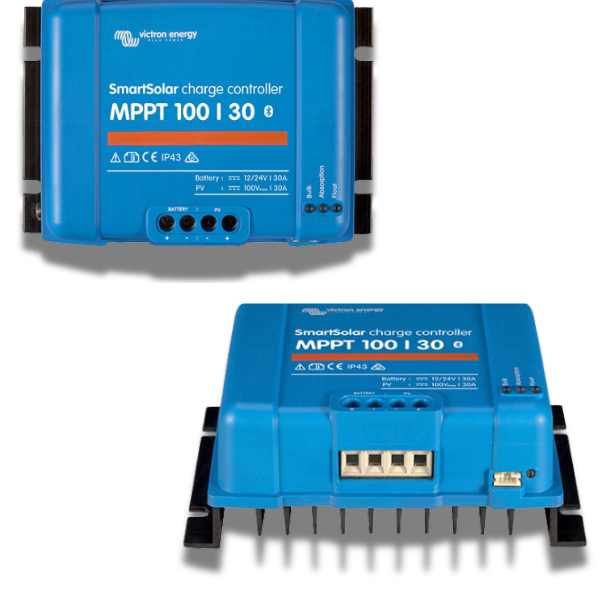

Victron Energy SmartSolar 12V/24V 30A Solar Charge Controller MPPT Type SCC110030210 (Bluetooth Smart Built-in)
SmartSolar MPPT 100/30 solar charge controller from Victron Energy with:
- 12V/24V auto select battery voltage
- 30A rated charge current
- 440W @ 12V or 880W @ 24V maximum PV power
- Automatic load disconnect
- 98% peak efficiency
- Reverse polarity (fuse) protection, output short circuit protection, over temperature protection
Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.
VE.Direct
For a wired data connection to a Color Control panel, Venus GX, PC or other devices
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximise energy harvest by locking to the optimum MPP.
Outstanding conversion efficinecy
No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor compensates absorption and float charge for temperature.
Real-time data display options
- Apple and Android smartphones, tablets, and other devices.
- Color Control panel.

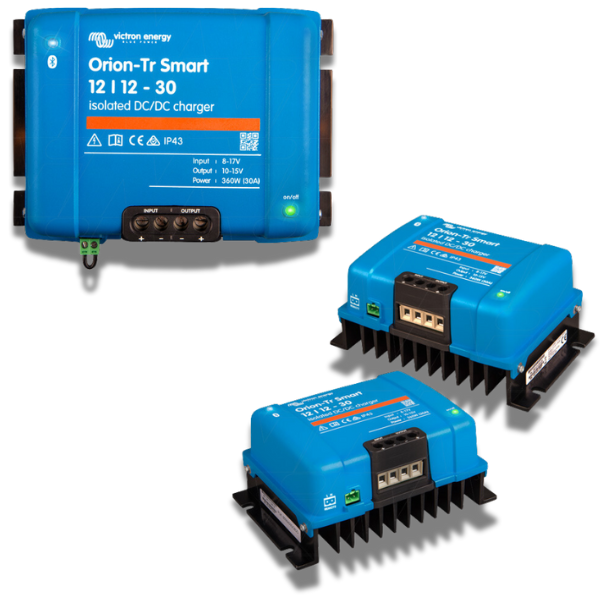

Victron Energy DC to DC Charger/Converter 30A Galvanic Isolated 10-17VDC Input to 10-15VDC Adjustable ORI121236120
Orion-Tr Smart DC-DC Charger Isolated
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.
For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism.
The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to
change settings and to update the charger when new software features become available.
Fully programmable
- Battery charge algorithm (configurable) or fixed output.
- Smart alternator compatibility: engine running detection mechanism.
Adaptive 3-stage charge algorithm: bulk – absorption – float
- For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
- For lithium batteries absorption time is fixed, default 2 hours.
- Alternatively, a fixed output voltage can be chosen.
Remote on-off
A remote on/off switch or relay contact can be connected to a two-pole connector.
Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Suitable for use in vehicles with a smart alternator (Euro 5 and Euro 6 engines) The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents unwanted discharge of the starter battery (see manual for details)
