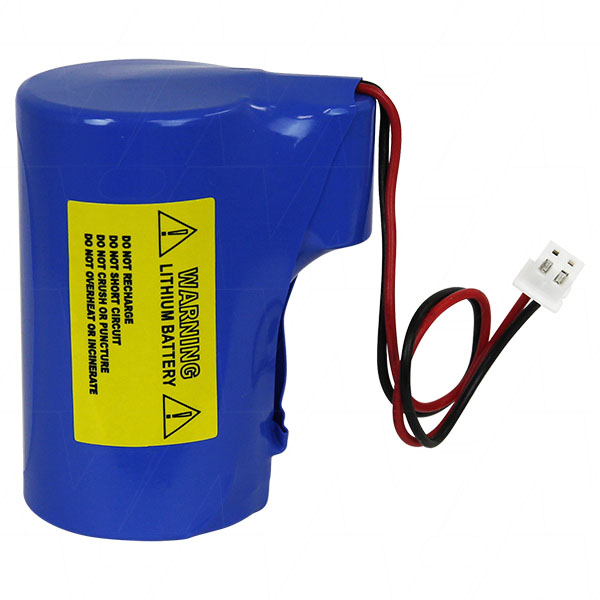

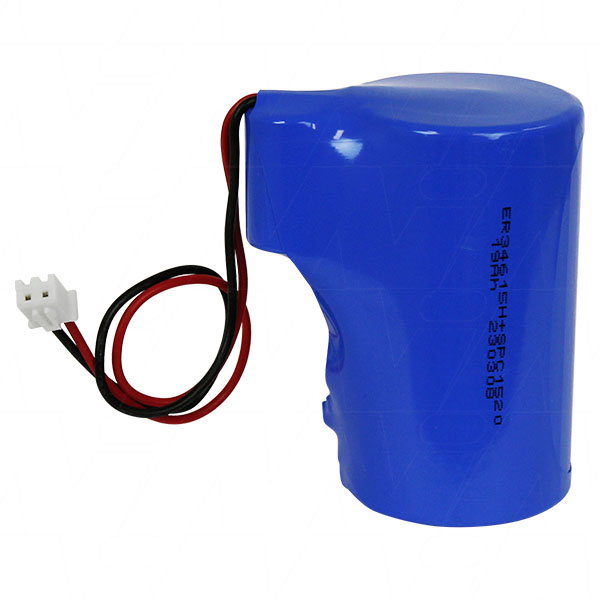

Fanso Lithium Thionyl Chloride (LTC) cell with a Super Pulse Capacitor (SPC) pack for use with electronic systems requiring short term / high power operation in long term stand-by fitments

The Super pulse cell capacitor (SPC) provides extremely fast high current discharge for devices where a traditional lithium thionyl chloride (LTC) cells have a delayed reaction. Combining these 2 elements allows for the LTC cell to keep the SPC fully charged, ready to power devices.

Supplied with JST XHP-2 Style connector

Features:

• High & stable operating voltage (3.6V)
• Very high pulse discharge: 2.0A (1 second) minimum 2.8V
• Very Small Impedance and Self Discharge
• High Capacity for extended service life
• Very wide temperature range: -40ºC ~ +85ºC.
• Hermetic glass-to-metal sealing.
• Long operating life.
• Non-flammable electrolyte.
• Compliant with IEC86-4 safety standard.
• UL Component Recognition MH46165.

• Gas & Utility Metering
• Emergency Alarm and security devices
• Vehicle E-Call systems
• GPS tracking system
• Military system
• RFID Transponders
• Automotive electronics
• Real-time clock

Compatible With:
EVE ES-341520/W



Battery Pack features:

ER34615H Fanso Bobbin style lithium thionyl chloride cell

SPC1520 Fanso super pulse capacitor

CE084 JST XHP-2 style connector
