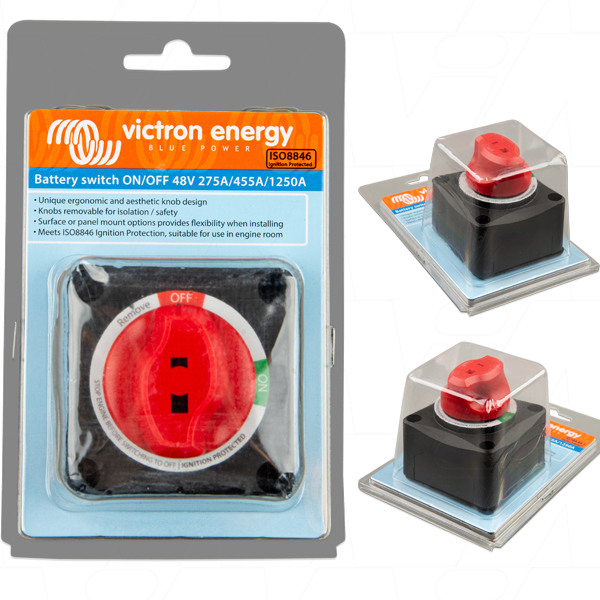

Victron Energy Battery Isolation Switch ON/OFF 275A VBS127010010

VBS127010010
Victron Energy Battery Isolation Switch ON/OFF 275A VBS127010010

$56 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No VBS127010010
Selling Unit EACH
Description Victron Energy Battery Isolation Switch ON/OFF 275A VBS127010010
Original Brand Victron Energy VBS127010010d
Voltage 48V
Brand Victron Energy
Size 275A
Width 69mm
Height 69mm
Length/Breadth/Depth 73mm
Weight 200g
Weight(kg) 0.260
Brand Victron Energy

Victron Energy marine grade Battery Isolator Switch for systems up to 48VDC.

Featuring heavy duty terminals and robust plastic construction, it is an ideal product for use in Marine, RV and 4x4 applications where the switch requires external mounting or exposure to the elements.

Features:

  • Unique ergonomic and aesthetic knob design
  • Knobs removable for isolation / safety
  • Surface or panel mounted options provides flexibility when installing
  • Meets ISO8846 ignition protection, suitable for use in engine room
  • Suitable for applications up to 48VDC

Battery Switch 270A

Max. cont. current  275A
One Minute Rating 450A
Cranking Rating 1200A
Voltage Rating 48V
Terminal material  Tin-plated copper
Hex nut material Tin-plated copper
Terminal Diameter 9.53mm
Recommended torque 8 N·m / 70 lbf·inch
Base material Glass fibre reinforced nylon
Weight 200 g
Dimensions (hxwxd) 69 x 69 x 73 mm
Mounting Surface or Rear Panel mount
Ignition Protection ISO8846 / SAE J1171
