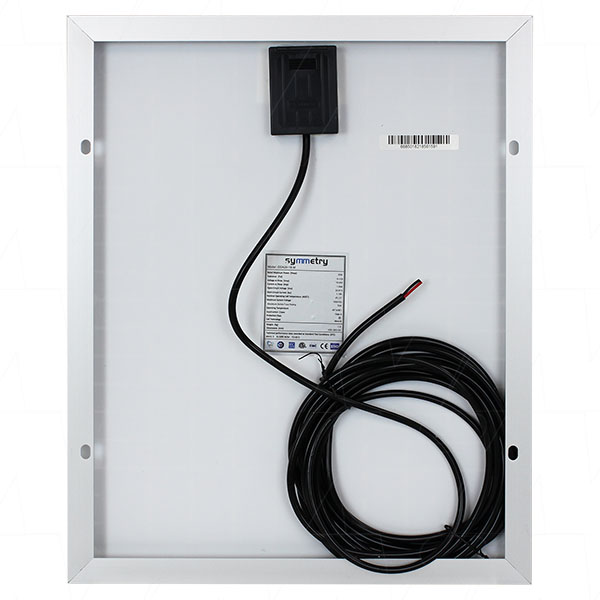

Symmetry SY2-M20W-5M 12V 20W 36 cells 1.09A IP65 Junction Box Monocrystalline Solar Module with 5m x 1.3mm2 dual core leads with tinned cable ends

SY2-M20W-5M
Symmetry SY2-M20W-5M 12V 20W 36 cells 1.09A IP65 Junction Box Monocrystalline Solar Module with 5m x 1.3mm2 dual core leads with tinned cable ends

$65 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:

Product Details

Model No	SY2-M20W-5M
Selling Unit	EACH
Description	Symmetry SY2-M20W-5M 12V 20W 36 cells 1.09A IP65 Junction Box Monocrystalline Solar Module with 5m x 1.3mm2 dual core leads with tinned cable ends
Voltage	12V
Brand	Symmetry
Size	20W
Width	345mm
Height	25mm
Length/Breadth/Depth	430mm
Weight	1900g
Weight(kg)	1.90
Brand	Symmetry

** FREIGHT INSURANCE IS MANDATORY FOR ALL SOLAR PANELS **

Symmetry SY2 Series Solar Panels

The New 5 busbar Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems.

Available in a range of sizes from 5 watts up to 160 watts, the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame.

Features:

5 Busbar Cell - 5 busbar solar cells improve the efficiency of modules, offer a better aesthetic appearance.
High Efficiency - High module conversion efficiency, through innovative manufacturing technology.
Low-Light Performance - Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
Severe Weather Resilience - Certified to withstand - wind load (2400Pa) and snow load (5400Pa)
Durability Against Extreme Environmental Conditions - High salt mist and ammonia resistance certified by TUV.
0-+5W Positive Tolerance - Detailed information in Electrical Specifications.

Multiple Applications such as:

Off Grid Systems
Solar Fountains
Caravans
Boats & Marine
Remote Lighting
Power Supplies
Telemetry
Electric Fencing

Specifications:

Rated Power - Pmax (watts)	20W
Max. Power Voltage VMP (V)	18.47V
Max. Power Current IMP (A)	1.09A
Open Circuit Voltage Voc (V)	22.61V
Short Circuit Current Isc (A)	1.15A
Max. System Voltage (V)	1000V
Max Series Fuse Rating (A)	10A
Voc Temp. Coefficients (V/°C)	0.290%
Isc Temp. Coefficients (A/°C)	+0.48%
Temperature Range	-40°C to +85°C
Cell Technology	Monocrystalline
Number of Cells	36
Junction Box	Yes, IP64
Connectors / Output Cable	5m long x 1.3mm2 dual core leads UV Rated
