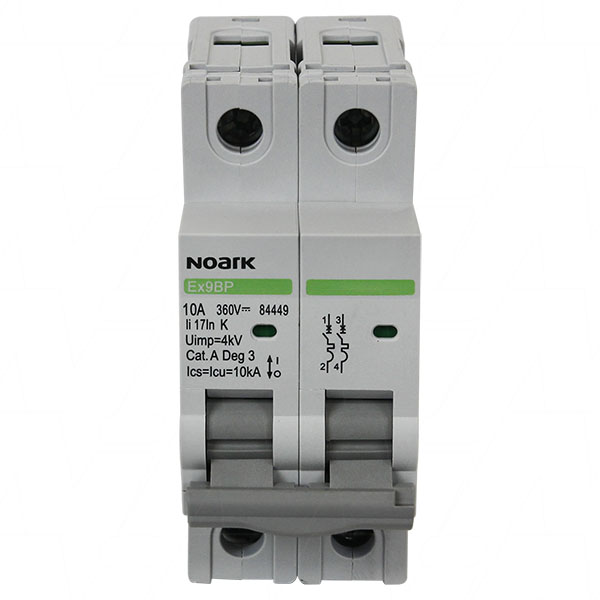

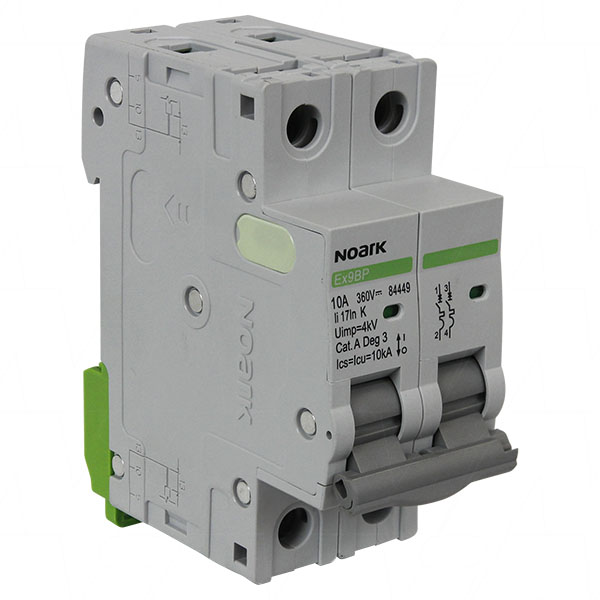

NOARK N84449 MCB EX9BP-N 10A 360V 2 Pole DC Circuit Breaker

N84449-2P-MCB 10A/360VDC
NOARK N84449 MCB EX9BP-N 10A 360V 2 Pole DC Circuit Breaker

$33 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No N84449-2P-MCB 10A/360VDC
Selling Unit EACH
Description NOARK N84449 MCB EX9BP-N 10A 360V 2 Pole DC Circuit Breaker
Application Solar, Automation, Control, Telecommunications, DC circuit applications
Original Brand Noark 10000146d
Voltage 360V
Brand Noark
Size 10A
Width 36mm
Height 89mm
Length/Breadth/Depth 74mm
Weight 240g
Weight(kg) 0.260
Brand Noark

Noark Miniature 360V DC Circuit Breakers (Non-polarised)

Noark DC miniature circuit breakers are non-polarised and suitable for short-circuit and overload protection of general direct current applications up to 10 A, in solar, automation, control, telecommunications, and many other DC circuit applications.

Specifications

 Article Code  10000146
 Noark Series  Ex9BP-N2P K 10A 360VDC
 Poles  2 (180VDC per pole)
 Current Rating (A)  10A
 Voltage (Max.)  360VDC
 Voltage (Min.)  12VDC
 Rated Breaking Capacity  6kA
 Curve Type  K
 Rated Insulation Voltage (VDC) Ui  1000VDC
 Terminal Capacity  35 mm²
 Terminal Torque (Nm)  2-3.5Nm
 Mounting  35mm Din Rail
 IP Rating (All sides/terminals)  IP40 / 20
 Standards  IEC/EN/AS60947-2, SAA101238EA

Data Sheet 3 N84449-2P-MCB 10A_360VDC5189_3.pdf
