Force H2 Systems are made to order using the following components:
System Integration Information:
The Pylontech Force H2 module can be integrated with many of the world's leading inverter brands.
|

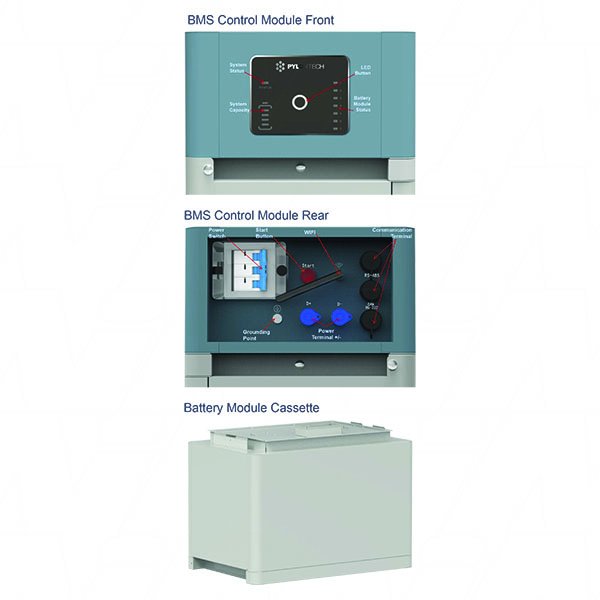

Pylontech Force H2 192V 7.1kWh Managed Battery System (2 Cassettes + BMS Controller and Base)
The Force-H1 & H2 are a high voltage modular stackable energy storage system based on lithium iron phosphate battery technology. Its attractive furniture type design and IP55 Rating makes it ideally suited for installing as a home energy storage system.
The Force H1 & H2 battery systems are designed to be installed without the aid of the inter connection battery cables, significantly reducing the installation time. The basic module is 3.55 kWh cassette, with a 90% DOD, and is available in two shapes, the H1 wider and lower or H2 narrower and higher, to meet all space requirements.
Features & Benefits:
- Modular design from 10.65kWh to 24.86kWh enables quick and secure installation, & maintenance with no exposed wiring or connectors
- Cycle life: >5000 cycles @ 25°C with 90% DoD for daily cyclic applications
- Working Temperature Range 0°C to 50°C with excellent discharge performance & cycle life
- Storage temperature range -20~60°C
- Suitable for indoor and covered outdoor (IP55) installation
- Cathode material is made from LiFePO4 for safety performance and long cycle life
- The BMS has protection functions including over discharge, over charge, over current and high/low temperature
- Compatible with many available Hybrid inverters
- Safety Cert. VDE2510-50, IEC62619, UL1973, IEC62477-1, IEC62040-1, CEC, CE
- Clean Energy Council Approved (CEC)
Warranty: The Force-H1 & H2 comes with a standard warranty of 10 years. Register your product on the Pylontech website. A linear depreciation to a minimum of 80% of capacity over 10 years is expected and is not covered by the warranty.
Specifications:
| Chemistry |
LiFePO4 |
| System Voltage (V) |
192V |
| System Capacity (kWh) |
7.1kWh |
| System Capacity (Ah) |
37Ah |
| Battery Controller |
FC0500M-40S |
| Battery Module (Cassette) |
FH9637 |
| No. of Modules (Cassettes) |
2 |
| Module Capacity (kWh) |
3.552kWh |
| Module Capacity (Ah) |
37Ah |
| System Max. Charge Voltage (Vdc) |
216V |
| System Standard Charge (A) |
7.4A |
| System Normal Charge (A) |
18.5A |
| System Max. Charge (A) 15sec. |
40A |
| System Min. Disch. Voltage (Vdc) |
174V |
| System Standard Discharge (A) |
7.4A |
| System Normal Discharge (A) |
18.5A |
| System Max. Discharge (A) |
40A |
| Efficiency(%, ≤0.5C-rate) |
96% |
| Depth of Discharge(%) |
90% |
| Communications |
CANBUS / Modbus RTU |
| Protection Class |
IP55 |
| Design Life (Years) |
15+ Years |
| Operating Temperatures (°C) |
0°C to +50°C |
| Storage Temperatures (°C) |
-20°C to +60°C |
| Humidity |
5~95% |
|
