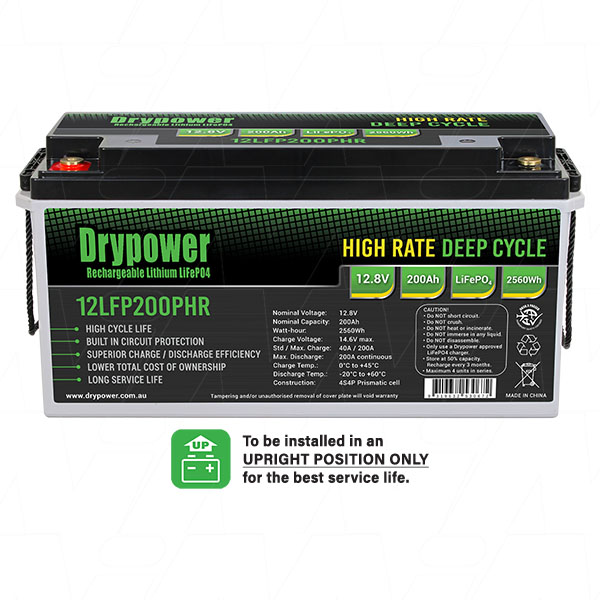

Drypower 12LFP200PHR High Rate 12V 200Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery

12LFP200PHR
Drypower 12LFP200PHR High Rate 12V 200Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery

$1071 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:

Product Details

Model No	12LFP200PHR
Selling Unit	EACH
Description	Drypower 12LFP200PHR High Rate 12V 200Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery
Application	Caravan/RV/camping, mobility, marine, medical, solar, and more
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	12.8V
Nominal Capacity	200000mAh
Maximum Continuous Discharge Current	200000
Brand	Drypower
Termination	F18 (M8 Bolt)
Size	4S4P
Width	485mm
Height	240mm
Length/Breadth/Depth	170mm
Weight	21200g
Brand	Drypower

Important Information:

SERIES CONNECTION CAPABLE

This Drypower Lithium Iron Phosphate battery can be connected in series up to 4S

No Parallel connection allowed

*See Product Manual or Datasheet for more information

** FREE SHIPPING **

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

HIGH RATE MODEL - 200A Maximum Continuous Discharge

4S4P Prismatic Construction

Specifications:

Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
Max. continuous discharge current: 200A
Charge voltage: 14.2V - 14.6V (14.2V recommended)
Standard charge current: 40A
Max. cont. charge current: 200A
Operating Discharge temperature: -20°C to +60ºC
Operating Charge temperature: +0°C to +45ºC
Storage temperature: -20°C to +45ºC
Operating Humidity (non-condensing): 5%-85%
Series Connection: Up to 4S
Parallel Connection: Nil

Warranty: 2 (+1) Years from Retail Sale Date (Add 1 Year if Registered Here)

High output: This battery is rated to a 200 amp continuous discharge. This is suitable to run inverters rated up to 2000 Watts.
For larger inverters in RV & Marine applications we recommend the use of the Pylontech RT12100G31. As a "Managed" battery, the RT12100G31 can be paralleled for higher discharge applications such as use by the Victron 3kVa inverter charger range. Please contact the engineers at Master Instruments for further information.
