			Multiple Applications such as:

				Off Grid Systems
Solar Fountains
CaravansBoats & MarineRemote LightingPower SuppliesTelemetryElectric Fencing
 |
** FREIGHT INSURANCE IS MANDATORY FOR ALL SOLAR PANELS **

Symmetry SY2 Series Solar Panels

The New 5 busbar Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems.

Available in a range of sizes from 5 watts up to 160 watts, the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame.

Features:

	5 Busbar Cell - 5 busbar solar cells improve the efficiency of modules, offer a better aesthetic appearance.High Efficiency - High module conversion efficiency, through innovative manufacturing technology.Low-Light Performance - Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.Severe Weather Resilience - Certified to withstand - wind load (2400Pa) and snow load (5400Pa)Durability Against Extreme Environmental Conditions - High salt mist and ammonia resistance certified by TUV.0-+5W Positive Tolerance - Detailed information in Electrical Specifications.



Specifications



			| Rated Power - Pmax (watts) | 100W |
			| Max. Power Voltage VMP (V)
 | 18.3V |
			| Max. Power Current IMP (A)
 | 5.47A |
			| Open Circuit Voltage Voc (V)
 | 22.42V |
			| Short Circuit Current  Isc (A)
 | 5.76A |
			| Max. System Voltage (V) | 1000V |
			| Max Series Fuse Rating (A) | 10A |
			| Voc Temp. Coefficients (V/°C)
 | 0.290%
 |
			| Isc Temp. Coefficients (A/°C)
 | +0.48% |
			| Temperature Range
 | -40°C to +85°C |
			| Cell Technology
 | Monocrystalline |
			| Number of cells
 | 36 |

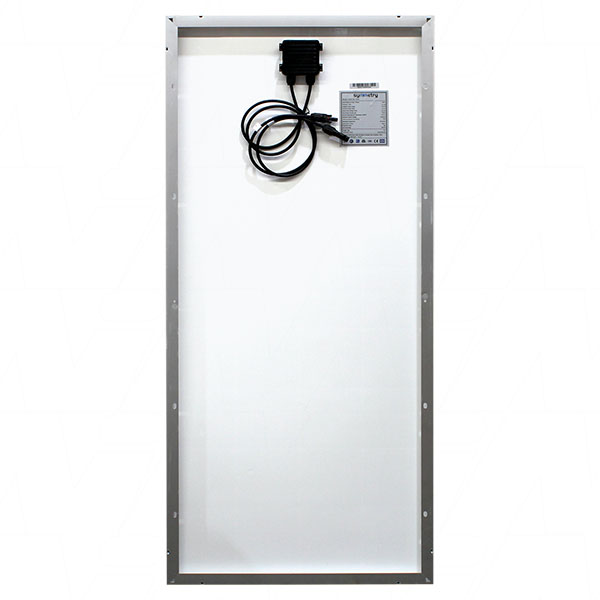

			| Junction Box | Yes, IP65 Rated
 |
			| Connectors / Output Cable | 2 x 0.9m long 2.5mm square cable with LH4 male & female connectors (rated to 30amps)
 |  |
