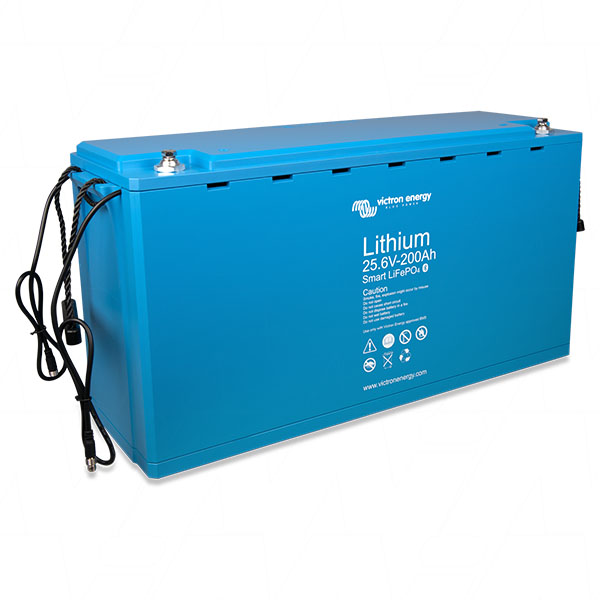

Victron Energy BAT524120610 24V (25.6V) 200Ah SMART Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery

LFP-BMS25.6V/200A
Victron Energy BAT524120610 24V (25.6V) 200Ah SMART Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery

$5949 inc GST.

Our Best Price

Shipping & Handling Calculator:

Post Code:

Product Details

Model No	LFP-BMS25.6V/200A
Selling Unit	EACH
Description	Victron Energy BAT524120610 24V (25.6V) 200Ah SMART Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery
Original Brand	Victron Energy BAT524120610d
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	25.6V
Nominal Capacity	200000mAh
Maximum Continuous Discharge Current	400000
Brand	Victron Energy
Width	650mm
Height	237mm
Length/Breadth/Depth	163mm
Weight	39000g
Weight(kg)	39
Brand	Victron Energy

Important Information:

Victron Energy LFP batteries have integrated cell balancing and cell monitoring.

Up to five batteries can be paralleled and up to four batteries can be series connected, so that a 48V battery bank of up to 3000Ah can be assembled.

The cell balancing/monitoring cables can be daisy-chained and must be connected to a Battery Management System (BMS) with two M8 circular connector cord sets.

The most Popular BMS is the VE Bus BMS This BMS can be used to control VE bus devices such as the Victron Inverter Charger range.

If not connecting to a victron inverter charger use the smallBMS

*See product manual for more information

High capacity 24V (25.6V) 200Ah Lithium Iron Phosphate (LiFePO4) battery module with built-in Bluetooth

Lithium-iron-phosphate (LiFePO4 or LFP) is the safest of the mainstream li-ion battery types. The nominal voltage of a LFP cell is 3,2V (lead-acid: 2V/cell). A 12,8V LFP battery therefore consists of 4 cells connected in series; and a 25,6V battery consists of 8 cells connected in series.

Specifications:

Cycle life: 2500 cycles (80% DoD); 5000 cycles (50% DoD)
Charge:
- Cut-off voltage: 28.8V
- Max. charge current (2C): 400A
Discharge:
- Cut-off voltage: 22.4V
- Max. continuous discharge current: 400A
Recommended charge current: 100A (0.5C)
Recommended discharge current: 200A (1.0C)
Configuration:
- Series: up to 2
- Parallel: up to 5
Temperature:
- Charge: 5°C to + 50ºC
- Discharge: -20°C to + 50ºC
- Storage: -45°C to + 70ºC

Consider implementing Victron Energy's range of Lithium Iron Phosphate modules in high energy demand applications:

More RUGGED compared to lead acid batteries.

LiFePO4 batteries do not need to be fully charged all the time. A partial charge may even slightly improve service life. In addition, LiFePO4 batteries have a wider operating temperature range, excellent cycling performance, lower internal resistance and higher rate of efficiency than lead acid batteries.

Lead acid batteries will fail prematurely due to sulfation if the battery is rarely, or never at all, fully charged or if the battery is stored for long periods partially or fully discharged.

Higher ENERGY EFFICIENCY than lead acid batteries.

Round trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of LiFePO4 batteries is 92% compared to lead acid batteries at around 80%. In off-grid applications like solar and/or wind, better energy efficiency means less energy loss.
