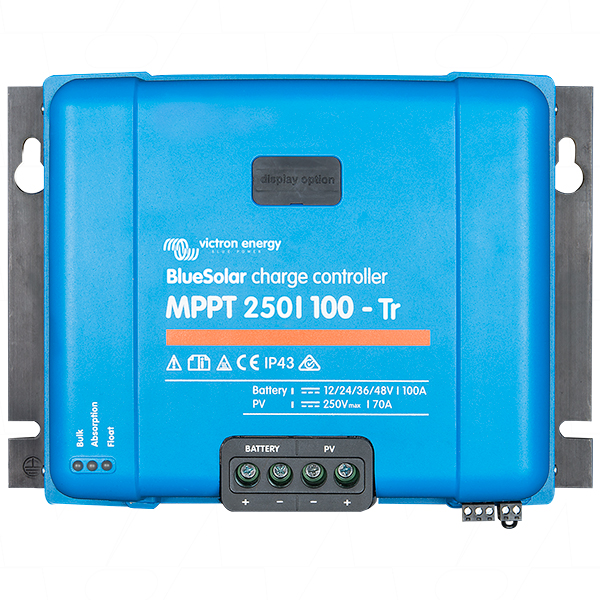

Victron Energy BlueSolar 12V/24V/36V/48V 100A Solar Charge Controller MPPT Tr Type SCC125110441

BlueSolar MPPT 250/100-Tr VE.Can
Victron Energy BlueSolar 12V/24V/36V/48V 100A Solar Charge Controller MPPT Tr Type SCC125110441

$1071 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No BlueSolar MPPT 250/100-Tr VE.Can
Selling Unit EACH
Description Victron Energy BlueSolar 12V/24V/36V/48V 100A Solar Charge Controller MPPT Tr Type SCC125110441
Voltage 12/24/36/48V
Brand Victron Energy
Size 100A
Width 295mm
Height 216mm
Length/Breadth/Depth 103mm
Weight 4500g
Weight(kg) 4.5
Brand Victron Energy

This package comes supplied with:

  • 12V/24V/36V/48V 100A Solar Charge Controller
  • Preset charge profiles for:
    • SLA
    • GEL
    • LITHIUM

Related Products

  • MPPT Control
  • Venus GX
  • Colour Control GX
  • VE.Direct LoRaWAN AU915-928
  • VE.Direct LoRaWAN EU863-870
  • VE.Direct LoRaWAN US902-928
  • VE.Direct Bluetooth Smart Dongle
  • VE.Direct Cable 0.9m
  • (other cable lengths also available)
  • VE.Direct to USB Interface

BlueSolar Charge Controllers MPPT 250/100-Tr VE.Can

  • 12V/24/V/36V/48V auto select battery voltage *software tool required for 36V
  • 100A rated charge current
  • 1450W @12V, 2900W @24V, 5800W @48V nominal PV power
  • Automatic load disconnect
  • 99% peak efficiency
  • Reverse polarity (fuse) protection, output short circuit protection and over temperature protection

Bluetooth Smart built-in
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve.Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 99%.

Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.

Internal temperature sensor
Compensates absorption and float charge voltage for temperature.

Optional external battery voltage and temperature sensing via Bluetooth
A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.

Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts.
Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

VE.Direct
For a wired data connection to a Color Control GX, other GX products, PC or other devices

Remote on-off
To connect for example to a VE.BUS BMS.

Programmable relay
Can be programmed (a.o. with a smartphone) to trip on an alarm, or other events.

Optional: LCD display


A pluggable LCD display for the SmartSolar Charge Controllers
