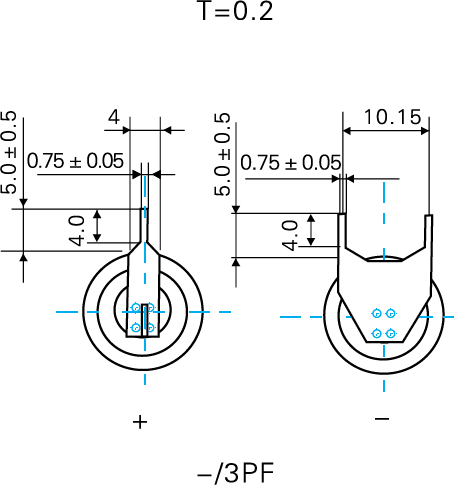

Fanso ER18505H-3PF A size 3.6V 4000mAh Lithium Thionyl Chloride Battery - Bobbin Type with S+ D- 10mm Pins

ER18505H-3PF
Fanso ER18505H-3PF A size 3.6V 4000mAh Lithium Thionyl Chloride Battery - Bobbin Type with S+ D- 10mm Pins

$18 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No ER18505H-3PF
Selling Unit EACH
Description Fanso ER18505H-3PF A size 3.6V 4000mAh Lithium Thionyl Chloride Battery - Bobbin Type with S+ D- 10mm Pins
Application Memory Back Up (MBU), IOT Devices, Smart Meters, Security
Chemistry Lithium Thionyl Chloride
Voltage 3.6V
Nominal Capacity 4000mAh
Maximum Continuous
Discharge Current		 70
Brand Fanso
Size Fat A
Width 18mm
Height 51mm
Weight 28g
Weight(kg) 0.065
Brand Fanso

ER18505F-3PF primary lithium battery with solder tags.

Wuhan Fanso high capacity range.

Features:

  • Long shelf life: self discharge rate less than 1% at 25°C.
  • High energy density (700Wh/kg).
  • Long operating life.
  • Stainless steel container and end caps.
  • Wide temperature range: -55ºC ~ +85ºC.
  • Hermetic glass-to-metal sealing.
  • Non-flammable electrolyte.
  • Compliant with IEC86-4 safety standard.
  • UL Component Recognition MH46165.
  • High and stable operating voltage.

Suitable for applications including:
  • Utility metering
  • Alarm and security devices
  • Memory backup power
  • Professional electronics
  • GPS tracking system
  • Military system
  • Automotive electronics
  • Real-time clock

Store in a cool dry place not exceeding +30ºC.
