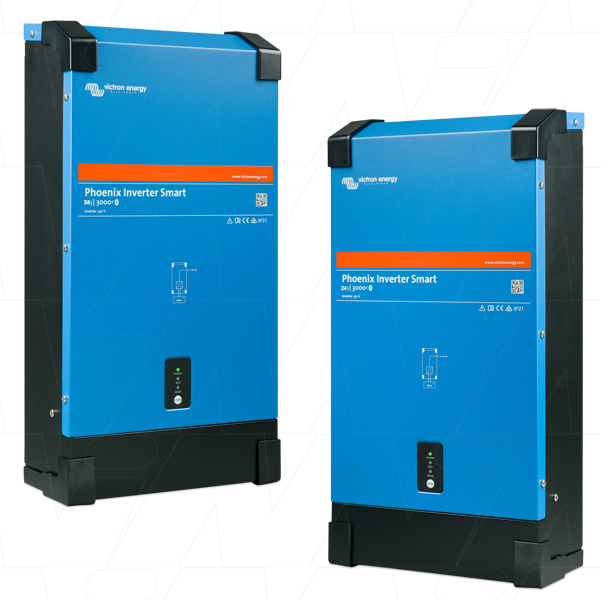

Victron Phoenix Smart Inverter 18.6-34VDC input - output 240VAC@3000VA PIN242300000

VPSINV-24/3000
Victron Phoenix Smart Inverter 18.6-34VDC input - output 240VAC@3000VA PIN242300000

$1773 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No VPSINV-24/3000
Selling Unit EACH
Description Victron Phoenix Smart Inverter 18.6-34VDC input - output 240VAC@3000VA PIN242300000
Original Brand Victron Energy PIN242300000d
Voltage 24V
Brand Victron Energy
Width 219mm
Height 485mm
Length/Breadth/Depth 125mm
Weight 12000g
Weight(kg) 12
Brand Victron Energy

24V 3000VA

Bluetooth built-in: fully configurable with a tablet or smartphone

• Low battery voltage alarm
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage: 210 - 245V
• Frequency: 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level
• Alarm relay
Monitoring:
• In- and output voltage, load and alarms

VE.Direct communication port
The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.

Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds
(adjustable).
If the load exceeds the preset level, the inverter will remain on.

Remote on/off
A remote on/off switch or relay contact can be connected to a two pole connector.
Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis
of a vehicle, for example).

LED diagnosis
Please see manual for a description.

To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch . The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.
