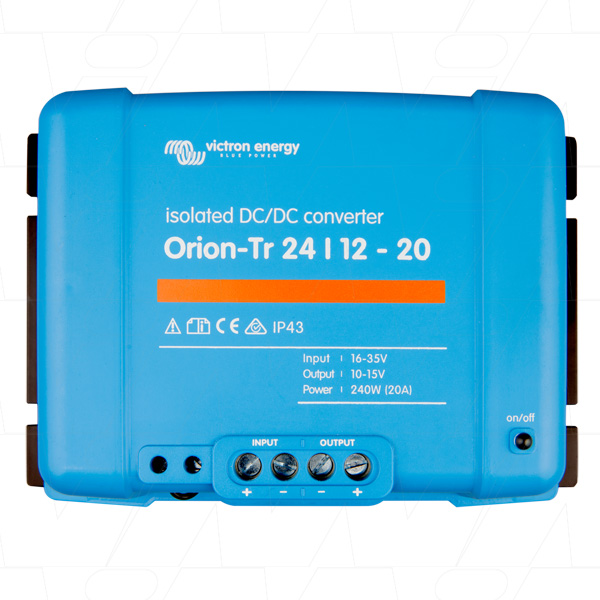

ORION-TR 24/12-20A (240W)
Victron Energy DC to DC Converter 20A Galvanic Isolated 16-35VDC Input to 10-15VDC Adjustable ORI241224110
| Model No | ORION-TR 24/12-20A (240W) | |
| Selling Unit | EACH | |
| Description | Victron Energy DC to DC Converter 20A Galvanic Isolated 16-35VDC Input to 10-15VDC Adjustable ORI241224110 | |
| Original Brand | Victron Energy ORI241224110d | |
| Voltage | 24V | |
| Brand | Victron Energy | |
| Size | 240W | |
| Width | 186mm | |
| Height | 71mm | |
| Length/Breadth/Depth | 131mm | |
| Weight | 1300g | |
| Weight(kg) | 2 | |
| Brand | Victron Energy | |
|
Orion-Tr range of DC to DC Galvanic Isolated Converters Remote on-off The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual). Adjustable output voltage: can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models are short circuit proof and can be paralleled to increase output current An unlimited number of units can be connected in parallel. IP43 protection When installed with the screw terminals oriented downwards. Screw terminals No special tools needed for installation. Input fuse (not replaceable) On 12V and 24V input models only. |
|||||
| |||||
