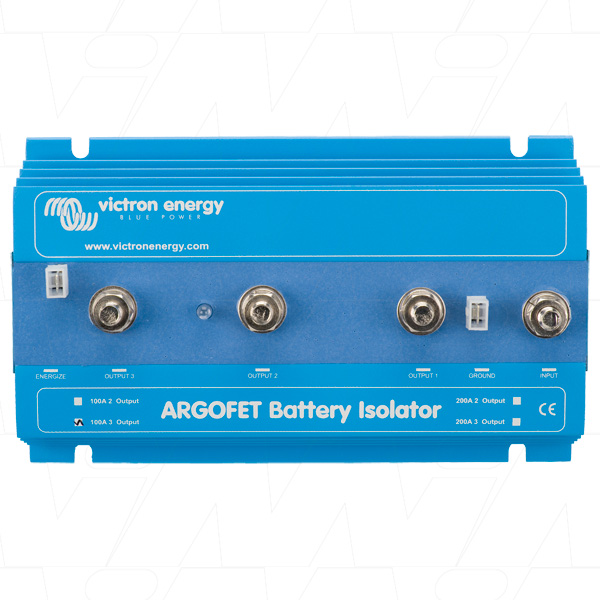

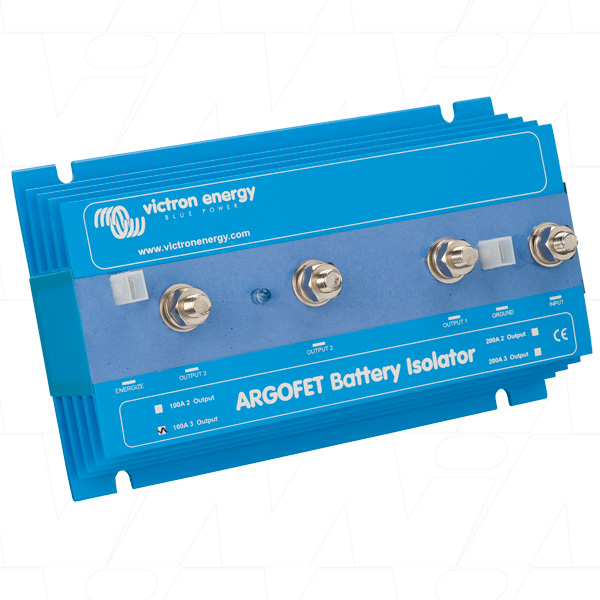

Victron 100A 3 Battery FET Isolator with Alternator energize input M8 ARG100301020 (R)

ARGOFET 100-3
Victron 100A 3 Battery FET Isolator with Alternator energize input M8 ARG100301020 (R)

$183 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No ARGOFET 100-3
Selling Unit EACH
Description Victron 100A 3 Battery FET Isolator with Alternator energize input M8 ARG100301020 (R)
Original Brand Victron Energy ARG100301020Rd
Brand Victron Energy
Termination M8
Size 100A
Width 120mm
Height 65mm
Length/Breadth/Depth 200mm
Weight 1400g
Weight(kg) 2
Brand Victron Energy
Similarly to diode battery isolators, FET isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. Discharging the accessory battery for example will not result in also discharging the starter battery.

In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents.

When using ARGO FET Battery Isolators, there is no need to also increase the output voltage of the alternator. Care should taken however to keep cable lengths short and of sufficient cross section.

Example:
When a current of 100 A flows through a cable of 50 mm> cross section (AWG 0) and 10 m length (30 ft), the voltage drop over the cable will be 0,26 Volt. Similarly a current of 50 A through a cable of 10 mm> cross section (AWG 7) and 5 m length (15 ft) will result in a voltage drop of 0,35 Volt!

Alternator energize input
Some alternators need DC voltage on the B+ output to start charging. Obviously, DC will be present when the alternator is directly connected to a battery. Inserting a Diode or FET splitter will however prevent any return voltage/current from the batteries to the B+, and the alternator will not start. The new Argofet isolators have a special current limited energize input that will power the B+ when the engine run/stop switch is closed.er the B+ when the ngine run/stop switch is closed.
