NOCO HM462 Dual L16 Commercial Grade Battery Box

*Not suitable for N150 case size batteries!

The HM462 Commercial Battery Box is a battery storage solution for sizes dual group L16 batteries, including Marine, Off-Grid Solar and Commercial equipment. It features a four corner fastening system and captive lid for easy installations, large cable entry holes for heavy gauge wires, full flow ventilation for releasing battery gasses, and a large battery acid reservoir. Its rugged, rotationally molded design provides ultimate protection in low-temperature environments and protects against UV, oil, gas and other contaminants. Perfect installation in a boat, off-grid solar systems, as well as, commercial equipment.

Designed for a dual group L16 batteries.

A four-corner fastening system for easy installation.

Large cable entry holes for heavy gauge wires (up to 4/0 AWG).

Large internal reservoir to collect battery acid.

Rugged, rotationally molded design for extreme conditions.

Meets USCG Code of Federal Regulations 183.420 and ABYC E-10.7.

Meets National Electrical Code, Articles 480 and 690 (Section 690.71).

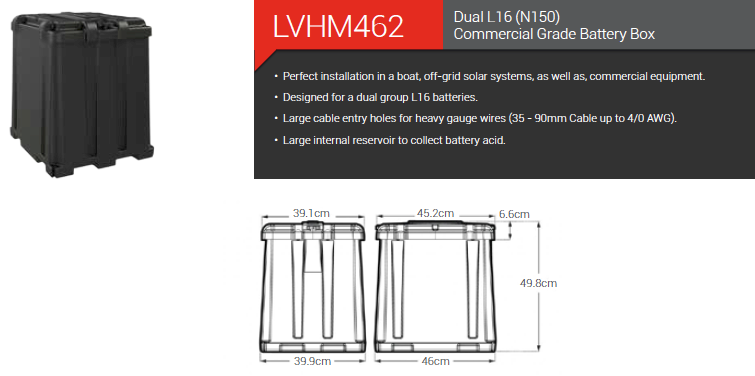

NOCO HM462 Dual L16 (N150) Commercial Grade Battery Box

NOCO Commercial Battery Boxes Range

Internal Dimensions (mm)

Model Number	Length	Width	Height
LVHM426 Dual 6	370	266	292
LVHM408 4D	538	243	281
LVHM484 8D	533	299	261
LVHM485 DUAL 8D	533	584	269
LVHM462 DUAL L16	365	304	441
