Blue Sea Systems e-Series Selector Battery Switch Blue Sea Systems BS-9001EB e-Series Selector Battery Switch

BS-9001E
Blue Sea Systems BS-9001EB e-Series Selector Battery Switch

$96 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No BS-9001E
Description Blue Sea Systems BS-9001EB e-Series Selector Battery Switch
Weight(kg) 0.590
Brand Blue Sea Systems

Blue Sea Systems BS-9001EB e-Series Selector Battery Switch

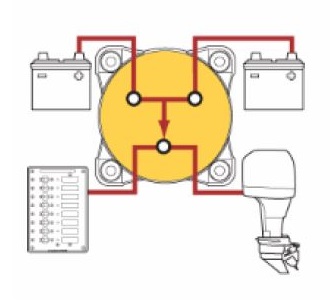

Switches isolated battery banks to all loads or combines battery banks to all loads
  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

Blue Sea Systems BS-9001e e-Series Selector Battery Switch

Specifications
Switch Type  Selector 4 Position
Color Red
Switch Positions 4
Battery Combine Yes
Alternator Field Disconnect  No
Maximum Voltage 32V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating  350A
Intermittent Rating  600A (5 min)
Cranking Rating 10 sec  2000A
Cranking Rating 1 min  1000A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Terminal Stud Size 3/8" - 16 (M10)
Weight 1.30lb (0.59 kg)
