Blue Sea Systems e-Series Selector 3 Position Battery Switch with AFD Blue Sea Systems BS-11001B e-Series Selector 3 Position Battery Switch with AFD

BS-11001
Blue Sea Systems BS-11001B e-Series Selector 3 Position Battery Switch with AFD

$111 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No BS-11001
Description Blue Sea Systems BS-11001B e-Series Selector 3 Position Battery Switch with AFD
Weight(kg) 0.590
Brand Blue Sea Systems
Blue Sea Systems BS-11001B e-Series Selector 3 Position Battery Switch with AFD

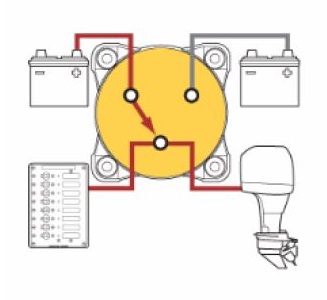

Simultaneously switches two isolated battery banks or combines battery banks to all loads. Make before break contact design allows switching between battery banks without power interruption.

Blue Sea Systems BS-11001 e-Series Selector 3 Position Battery Switch with AFD

Specifications
Switch Type  Selector 3 Position
Color Red
Switch Positions 3
Battery Combine No
Alternator Field Disconnect  Yes
Maximum Voltage 32V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating  350A
Intermittent Rating  600A (5 min)
Cranking Rating 10 sec  2000A
Cranking Rating 1 min  1000A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Terminal Stud Size 3/8" - 16 (M10)
Weight 1.30lb (0.59 kg)
