Blue Sea Systems e-Series Dual Circuit Battery Switch Blue Sea Systems BS-5510EB e-Series Dual Circuit Battery Switch

BS-5510E
Blue Sea Systems BS-5510EB e-Series Dual Circuit Battery Switch

$119 inc GST.

Our Best Price

Qty:

Shipping & Handling Calculator:

Post Code:
Model No BS-5510E
Description Blue Sea Systems BS-5510EB e-Series Dual Circuit Battery Switch
Weight(kg) 0.590
Brand Blue Sea Systems

Blue Sea Systems BS-5510EB e-Series Dual Circuit Battery Switch

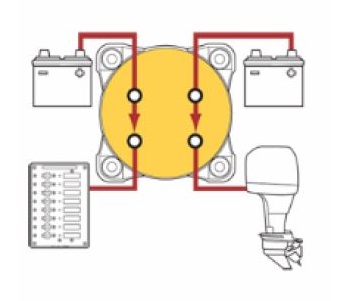

Simultaneously switches two isolated battery banks

  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

Blue Sea Systems BS-5510e e-Series Dual Circuit Battery Switch

Specifications
Switch Type  Dual Circuit
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  No
Maximum Voltage 32V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating  350A
Intermittent Rating  525A (5 min)
Cranking Rating 10 sec  1000A
Cranking Rating 1 min  750A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Terminal Stud Size 3/8" - 16 (M10)
Weight 1.30lb (0.59 kg)
