The all in one 12V and 24V charging station
Fast, multi step charging

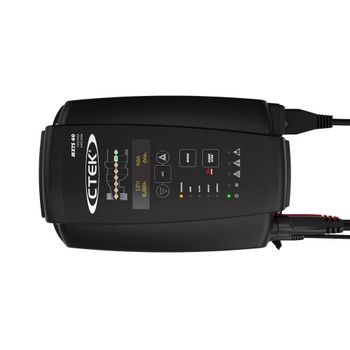

The MXTS 40 is the all in one battery charging, maintenance and support station that’s essential equipment for 12V and 24V vehicle workshops and showrooms. It’s easy to use and electronically safe, with rapid charging for all types of batteries.
The MXTS 40 has both 40A/12V and 20A/24V output, and provides selectable constant voltage settings to avoid ECU damage due to voltage fluctuation during programming. As well as the 8 step charge progress display, the MXTS 40 also has an easy to read OLED display to give you clear readouts of key charge parameters, including current, voltage and amps charged. It has a Recond mode for reconditioning deeply discharged batteries and a temperature sensor for optimised charging regardless of weather conditions. The MXTS 40 has been designed to protect vehicle electronics and is housed in heavy duty polycarbonate for rough environments. It can be used with the optional Wall Hanger Pro and Trolley Pro for secure storage and maximum portability.
Technical information
Input
|
220–240VAC, 50–60Hz, 3.0A max
|
| Output
|
14.4V, 40A/12V or 20A/24V |
Start voltage
|
2.0V |
Back current drain*
|
Corresponding to less than 1Ah/month
|
Ambient temperature
|
-20˚C to +50˚C
|
Battery types
|
All types of lead-acid batteries, 12V, 24V, WET, MF, Ca/Ca, AGM, GEL
|
| Battery capacity |
10–1200Ah
|
Warranty
|
2 years
|
Insulation class
|
IP20
|
| Ripple**
|
Less than 4%
|
Key Benefits
-
Charges 12V batteries from 20-1200Ah and Charges 24V batteries from 10 – 600Ah
- Recond program
- Temperature sensor to compensate for cold conditions
- Easy to read OLED display
- Comes with heavy duty clamps and high quality detachable 2.5m charge cables
- Electronically safe multi step rapid charging
- 40A/12V and 20A/24V output
- IP20 classified
- Safe spark free operation
- Reverse polarity protected
- Short circuit proof
- 2-year warranty
Inside the box
- CTEK MXTS40 12/24 Volt 40/20 Amp Charger
- Connect Clamp
